Jay R. Smith111 Small Area Overflow Roof Drain - Jay R. Smith

Jay R. Smith Small Area Overflow Roof Drain (Roof Drain). Model Series 111. Cast iron body, flashing clamp, water dam, and dome; Regularly furnished with 6" high cast iron dome

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF111-Small-Area-Overflow-Roof-Drain---Jay-R.-Smith.pdfData sheet

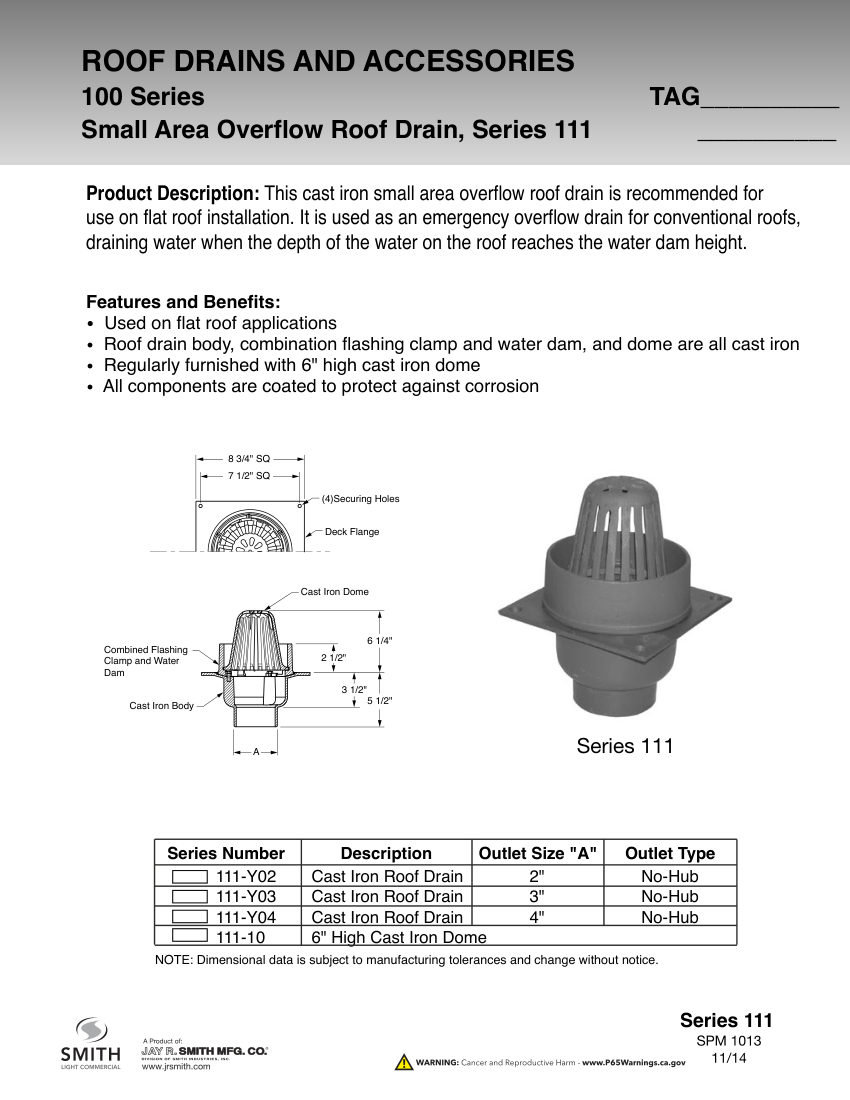

Jay R. Smith 111 Small Area Overflow Roof Drain - Jay R. Smith cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
111 Small Area Overflow Roof Drain - Jay R. Smith
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number111 Small Area Overflow Roof Drain - Jay R. Smith
DescriptionJay R. Smith Small Area Overflow Roof Drain (Roof Drain). Model Series 111. Cast iron body, flashing clamp, water dam, and dome; Regularly furnished with 6" high cast iron dome
Outlet sizes available2", 3", 4"; No-Hub outlet connection. material: Cast Iron
Connection size2", 3", 4"
End connectionNo-Hub
FinishCoated
MountingFlat roof
Dimensions8 3/4" SQ, 7 1/2" SQ, 6 1/4" H.
