Jay R. Smith1412-DEP Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Heel-Proof Promenade Deck Drain (Floor Drain). Model S1412-DEP. Load Rating: 5,000 lbs to 7,499 lbs (2,250 kg to 3,375 kg); Designed for heel-proof safety; Heavy duty strength; Nickel bronze top. material: Bronze

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1412-DEP-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

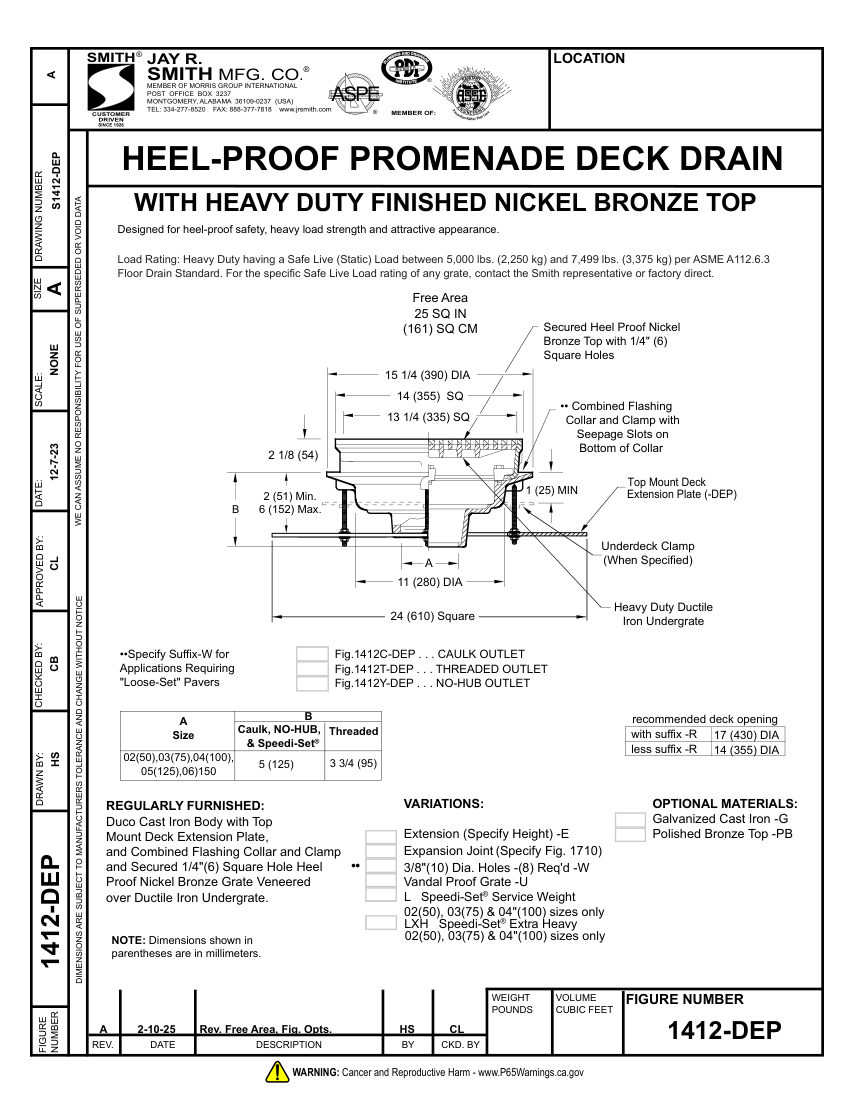

Jay R. Smith 1412-DEP Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
1412-DEP Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1412-DEP Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Heel-Proof Promenade Deck Drain (Floor Drain). Model S1412-DEP. Load Rating: 5,000 lbs to 7,499 lbs (2,250 kg to 3,375 kg); Designed for heel-proof safety; Heavy duty strength; Nickel bronze top. material: Bronze
FinishHeavy Duty Finished Nickel
ComplianceASME A112.6.3.
