Jay R. Smith1415, 1425 Roof Drain - Jay R. Smith Mfg. Co

Jay R. Smith Promenade Deck Drain (Roof Drain). Model 1415. Load Rating: Medium Duty; Safe Live (Static) Load: 2,000 lbs (900 kg) to 4,999 lbs (2,250 kg); Adjustable Top Design

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1415-1425-Roof-Drain---Jay-R.-Smith-Mfg.-Co.pdfData sheet

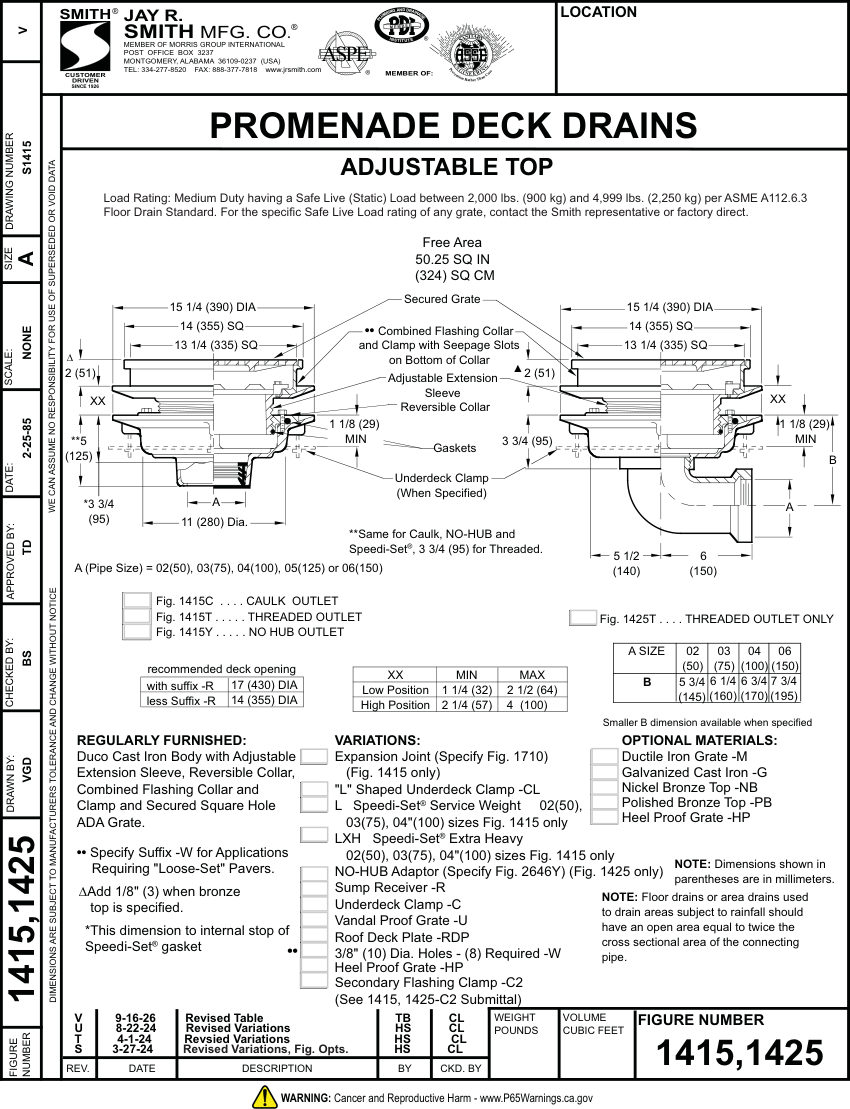

Jay R. Smith 1415, 1425 Roof Drain - Jay R. Smith Mfg. Co cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
1415, 1425 Roof Drain - Jay R. Smith Mfg. Co
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1415, 1425 Roof Drain - Jay R. Smith Mfg. Co
DescriptionJay R. Smith Promenade Deck Drain (Roof Drain). Model 1415. Load Rating: Medium Duty; Safe Live (Static) Load: 2,000 lbs (900 kg) to 4,999 lbs (2,250 kg); Adjustable Top Design
ManufacturerJay R. Smith Mfg. Co.. mounting: Adjustable Top
ComplianceASME A112.6.3.
