Jay R. Smith1779 Wall Box and Downspout Nozzle - Jay R. Smith

Jay R. Smith Wall Box and Downspout Nozzle (Drainage). Model 1779-04. 4 inch (100mm) pipe size; Threaded connection; Overall height 16 inches (406 mm); Overall width 15 33/64 inches (394 mm). connectionSize: 4 inch (100mm)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1779-Wall-Box-and-Downspout-Nozzle---Jay-R.-Smith.pdfData sheet

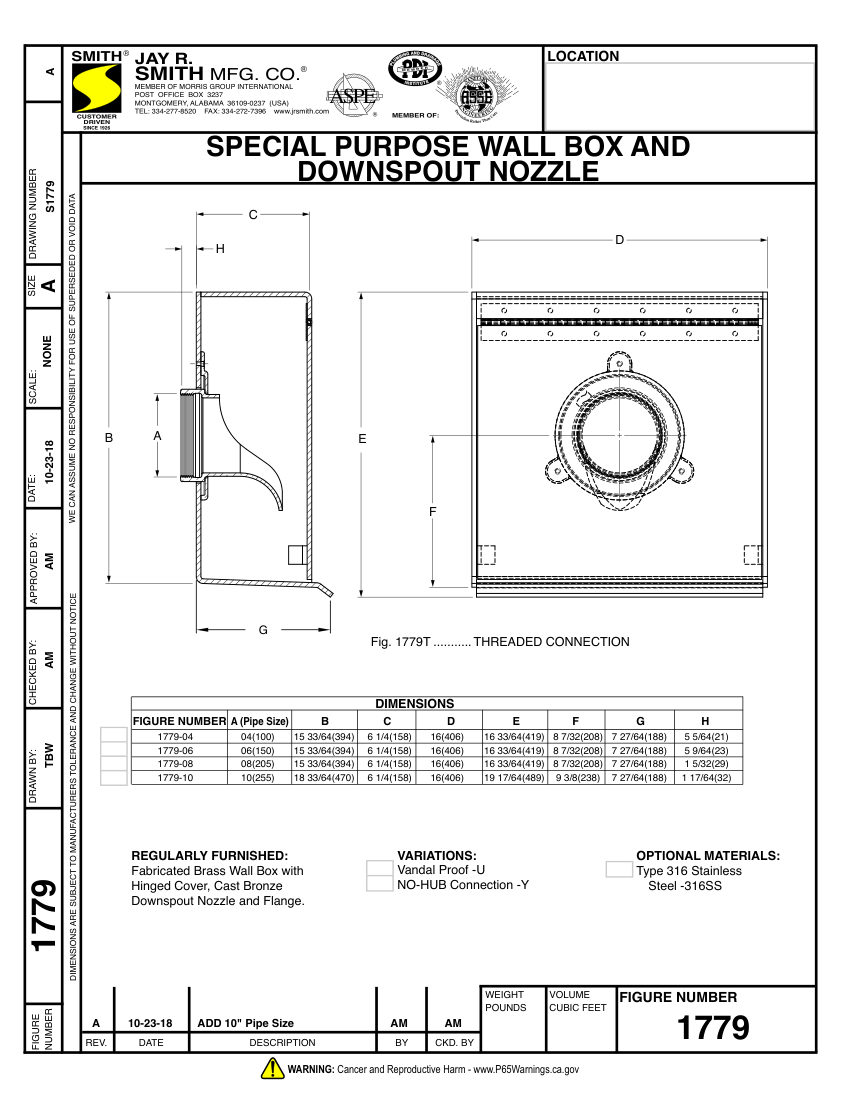

Jay R. Smith 1779 Wall Box and Downspout Nozzle - Jay R. Smith cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
1779 Wall Box and Downspout Nozzle - Jay R. Smith
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1779 Wall Box and Downspout Nozzle - Jay R. Smith
DescriptionJay R. Smith Wall Box and Downspout Nozzle (Drainage). Model 1779-04. 4 inch (100mm) pipe size; Threaded connection; Overall height 16 inches (406 mm); Overall width 15 33/64 inches (394 mm). connectionSize: 4 inch (100mm)
End connectionThreaded
MountingWall
Dimensions15 33/64 in (394 mm) x 6 1/4 in (158 mm) x 16 in (406 mm).
