Jay R. Smith2005-ABFVNB Floor Drain

Jay R. Smith Floor or Shower Drain (Floor Drain). Model 2005-ABFVNB. Includes adjustable strainer head; Features ball float backwater valve; Drain body diameter is 9 inches (230 mm); Trap primer connection size is 1 1/4 inches (32 mm). connectionSize: 1 1/4 (32)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2005-ABFVNB-Floor-Drain.pdfData sheet

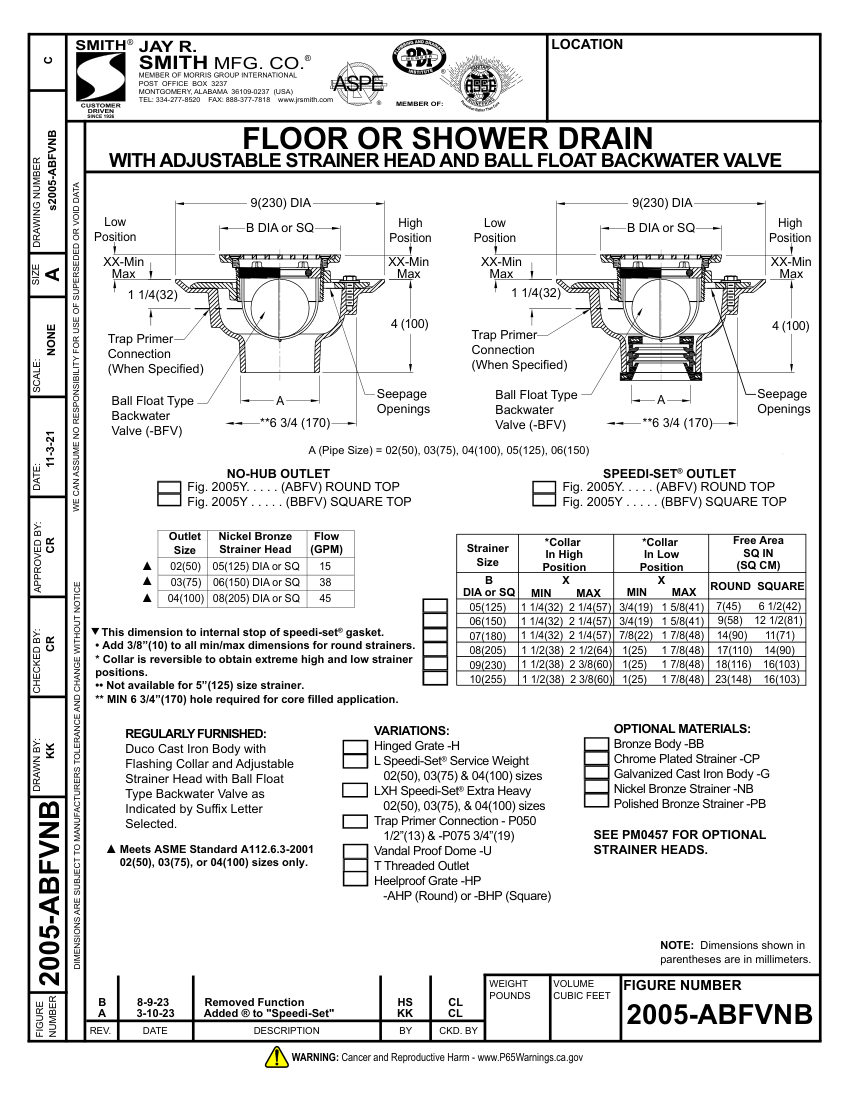

Jay R. Smith 2005-ABFVNB Floor Drain cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
2005-ABFVNB Floor Drain
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2005-ABFVNB Floor Drain
DescriptionJay R. Smith Floor or Shower Drain (Floor Drain). Model 2005-ABFVNB. Includes adjustable strainer head; Features ball float backwater valve; Drain body diameter is 9 inches (230 mm); Trap primer connection size is 1 1/4 inches (32 mm). connectionSize: 1 1/4 (32)
End connectionTrap Primer Connection
Dimensions9 (230) DIA.
