Jay R. Smith2051 Floor Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Floor or Shower Drain (Floor Drain). Model 2051. Load Rating: Light Duty (Safe Live Load < 2,000 lbs / 900 kg); Includes Adjustable Strainer Head; Reversible Flashing Collar

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2051-Floor-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

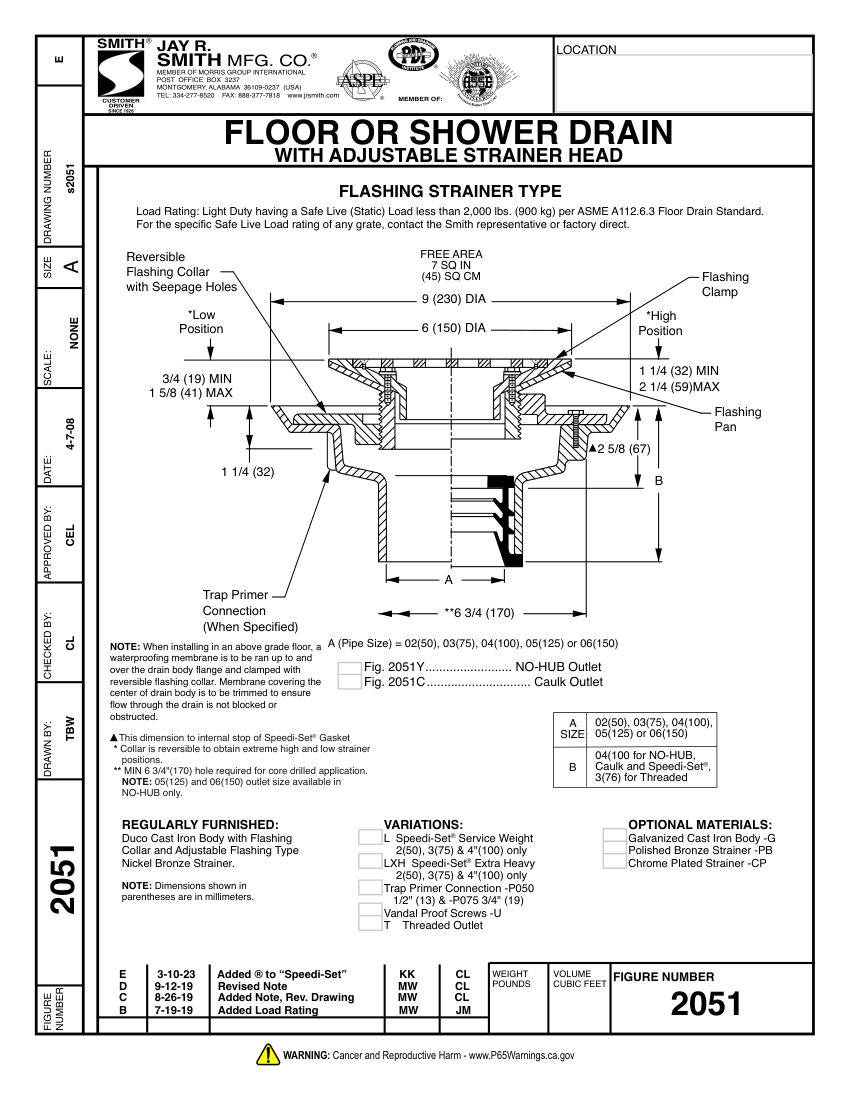

Jay R. Smith 2051 Floor Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
2051 Floor Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2051 Floor Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Floor or Shower Drain (Floor Drain). Model 2051. Load Rating: Light Duty (Safe Live Load < 2,000 lbs / 900 kg); Includes Adjustable Strainer Head; Reversible Flashing Collar
Free Area7 sq in (45 sq cm). mounting: Flashings Collar with Seepage Holes
DimensionsFree Area: 7 sq in (45 sq cm)
Flashing Pan2 5/8 in (67 mm)
ComplianceASME A112.6.3.
