Jay R. Smith2130-S-H Floor Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Light Duty Floor Drain (Floor Drain). Model 2130-S-H. Light duty drain with square frame and hinged round grate; Free area of 33.50 Sq. In. (216 Sq. Cm.); Hinged cast iron slotted grate; Grate hinge secured to collar. material: Cast Iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2130-S-H-Floor-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

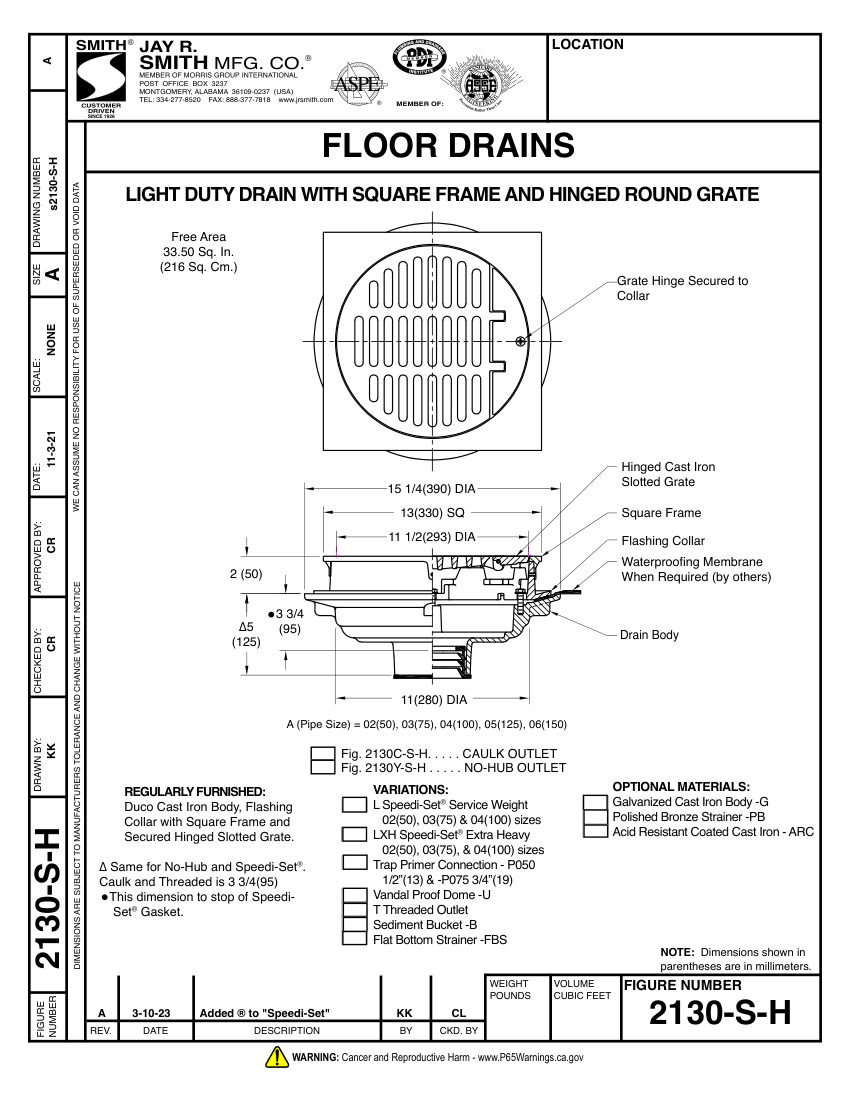

Jay R. Smith 2130-S-H Floor Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
2130-S-H Floor Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2130-S-H Floor Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Light Duty Floor Drain (Floor Drain). Model 2130-S-H. Light duty drain with square frame and hinged round grate; Free area of 33.50 Sq. In. (216 Sq. Cm.); Hinged cast iron slotted grate; Grate hinge secured to collar. material: Cast Iron
MountingSquare Frame
Dimensions13 in (330 mm) Square Frame; 15 1/4 in (390 mm) Grate Diameter; 11 1/2 in (293 mm) Flashing Collar Diameter.
