DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith2679 Floor Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Planter Drain (Drainage). Model 2679. Cast iron round top with anti-tilt grate; Includes slotted tractor grate; Stainless steel perforated gravel stop/extension; Cast iron dome bottom strainer. material: Cast Iron, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2679-Floor-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

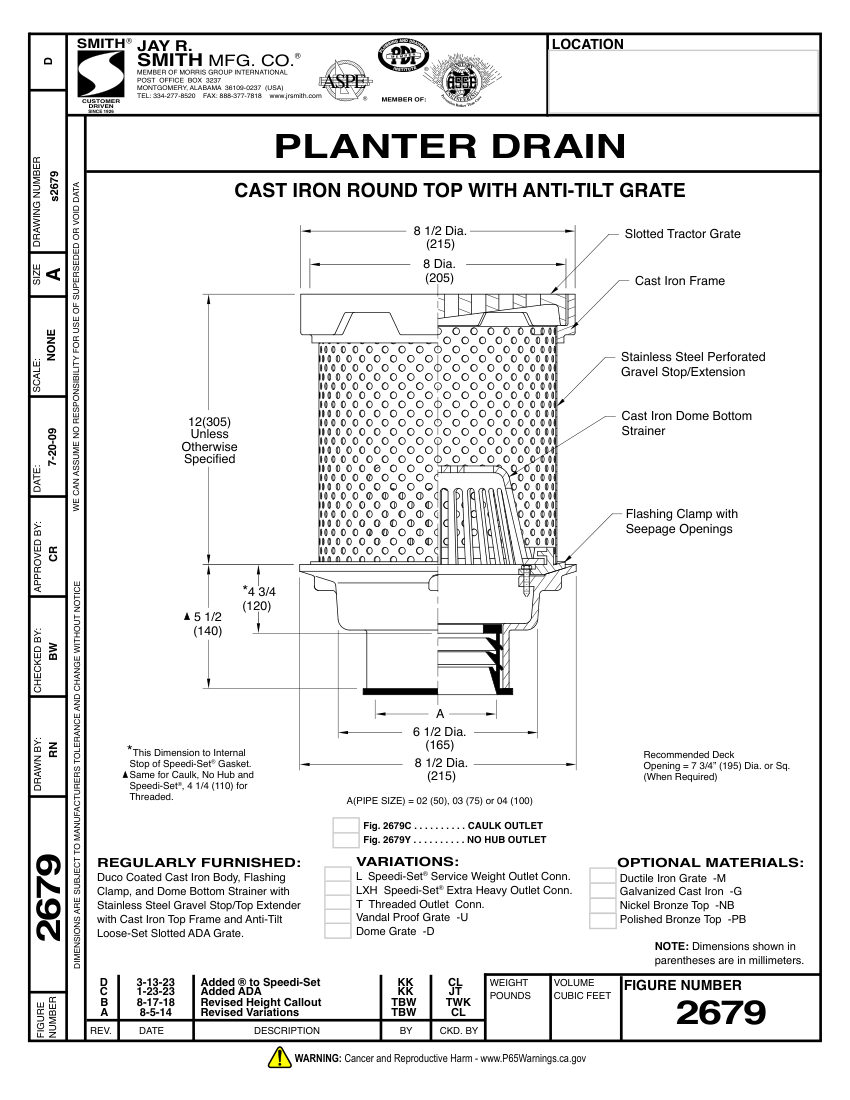

Jay R. Smith 2679 Floor Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
2679 Floor Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2679 Floor Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Planter Drain (Drainage). Model 2679. Cast iron round top with anti-tilt grate; Includes slotted tractor grate; Stainless steel perforated gravel stop/extension; Cast iron dome bottom strainer. material: Cast Iron, Stainless Steel
Dimensions8 1/2 Dia. (215 mm), 8 Dia. (205 mm).
