DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith2694 Trap Primer - Jay R. Smith Mfg. Co.

Jay R. Smith Pressure Drop Activated Trap Seal Primer (Trap Seal Primer). Model 2694. Pressure drop activated; Includes filter screens; Features air gap vacuum relief; Available with NPT or Copper Sweat unions. connectionSize: 1/2 NPT

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2694-Trap-Primer---Jay-R.-Smith-Mfg.-Co..pdfData sheet

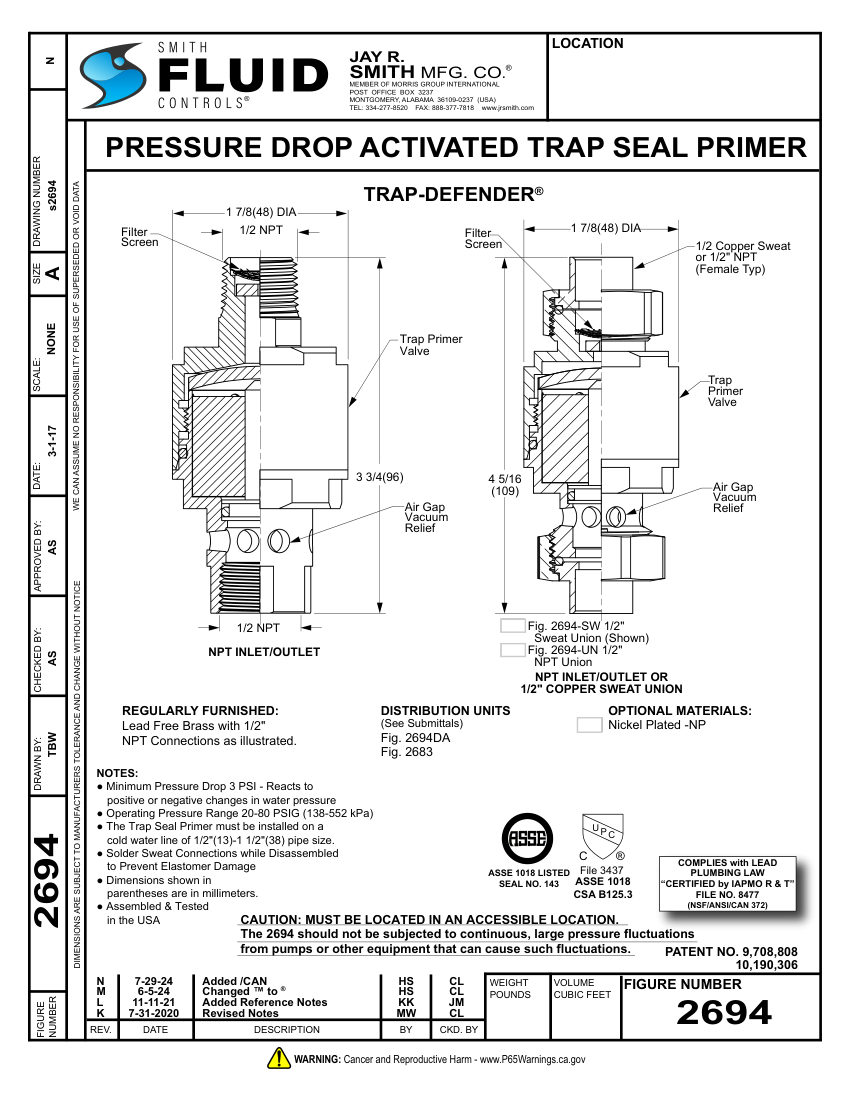

Jay R. Smith 2694 Trap Primer - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
2694 Trap Primer - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2694 Trap Primer - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Pressure Drop Activated Trap Seal Primer (Trap Seal Primer). Model 2694. Pressure drop activated; Includes filter screens; Features air gap vacuum relief; Available with NPT or Copper Sweat unions. connectionSize: 1/2 NPT
End connection1/2 NPT or 1/2 Copper Sweat
Dimensions3 3/4 in (96 mm) x 4 5/16 in (109 mm).
