DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith2694DA-CTS Distribution Unit - Jay R. Smith Mfg. C

Jay R. Smith Distribution Unit. Model 2694DA-CTS. 1/2" NPT Inlet Connection; (4) 3/8" NPT x 5/8" O.D. Push-in Outlets; Available in Lead Free Brass or ABS Body

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2694DA-CTS-Distribution-Unit---Jay-R.-Smith-Mfg.-C.pdfData sheet

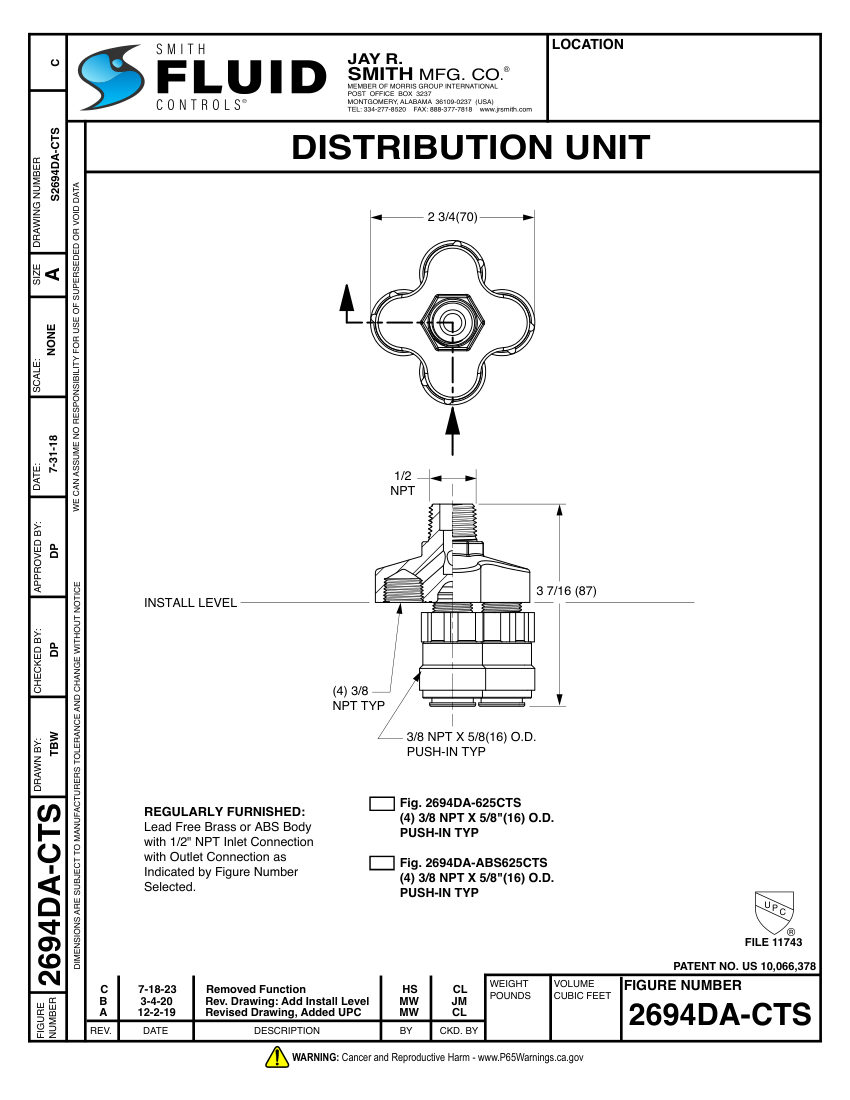

Jay R. Smith 2694DA-CTS Distribution Unit - Jay R. Smith Mfg. C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
2694DA-CTS Distribution Unit - Jay R. Smith Mfg. C
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2694DA-CTS Distribution Unit - Jay R. Smith Mfg. C
DescriptionJay R. Smith Distribution Unit. Model 2694DA-CTS. 1/2" NPT Inlet Connection; (4) 3/8" NPT x 5/8" O.D. Push-in Outlets; Available in Lead Free Brass or ABS Body
Dimensions2 3/4" x 3 7/16". material: Lead Free Brass or ABS
Connection size1/2 NPT Inlet, (4) 3/8 NPT Outlets
End connectionPush-in
Dimensions2 3/4" (70mm) x 3 7/16" (87mm)
ComplianceUS Patent 10,066,378.
