Jay R. Smith272SM-CTS Trap Primer - Jay R. Smith Mfg. Co

Jay R. Smith Electronic Trap Priming Device (Trap Primer). Model 272SM-36-CTS-120. Hard wired electrical connection; Includes vacuum breaker; Screwdriver style stop valve; NEMA 1 surface mount enclosure. connectionSize: 1/2" NPTF Inlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF272SM-CTS-Trap-Primer---Jay-R.-Smith-Mfg.-Co.pdfData sheet

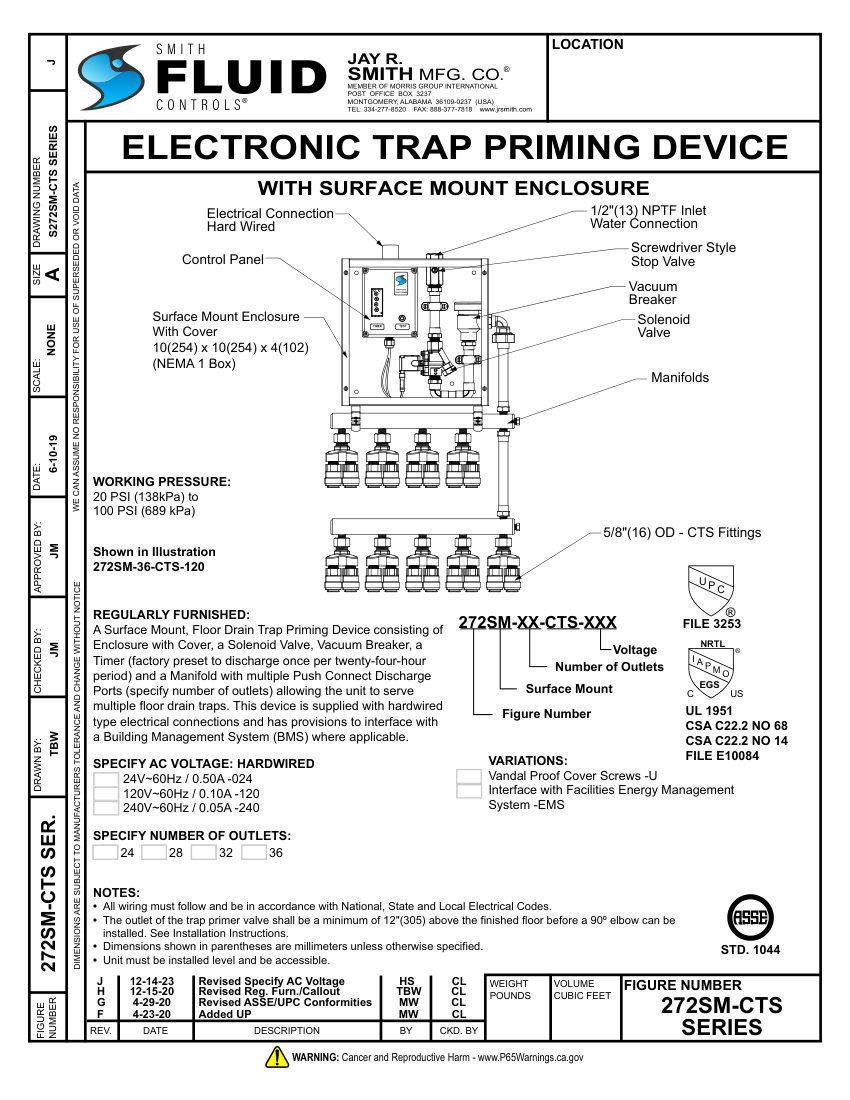

Jay R. Smith 272SM-CTS Trap Primer - Jay R. Smith Mfg. Co cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
272SM-CTS Trap Primer - Jay R. Smith Mfg. Co
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number272SM-CTS Trap Primer - Jay R. Smith Mfg. Co
DescriptionJay R. Smith Electronic Trap Priming Device (Trap Primer). Model 272SM-36-CTS-120. Hard wired electrical connection; Includes vacuum breaker; Screwdriver style stop valve; NEMA 1 surface mount enclosure. connectionSize: 1/2" NPTF Inlet
End connection5/8" OD CTS Fittings
Pressure Rating20 PSI (138kPa) to 100 PSI (689 kPa)
MountingSurface Mount
Dimensions10" x 10" x 4" (NEMA 1 Box)
Voltage120V.
