DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith272SM Trap Primer - Jay R. Smith Mfg. Co.

Jay R. Smith Electronic Trap Priming Device (Trap Primer). Model 272SM-32-500-120. Hard wired electrical connection; Includes solenoid valve and vacuum breaker; Surface mount enclosure with cover; Operating pressure range 20-100 PSI. connectionSize: 1/2" NPTF

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF272SM-Trap-Primer---Jay-R.-Smith-Mfg.-Co..pdfData sheet

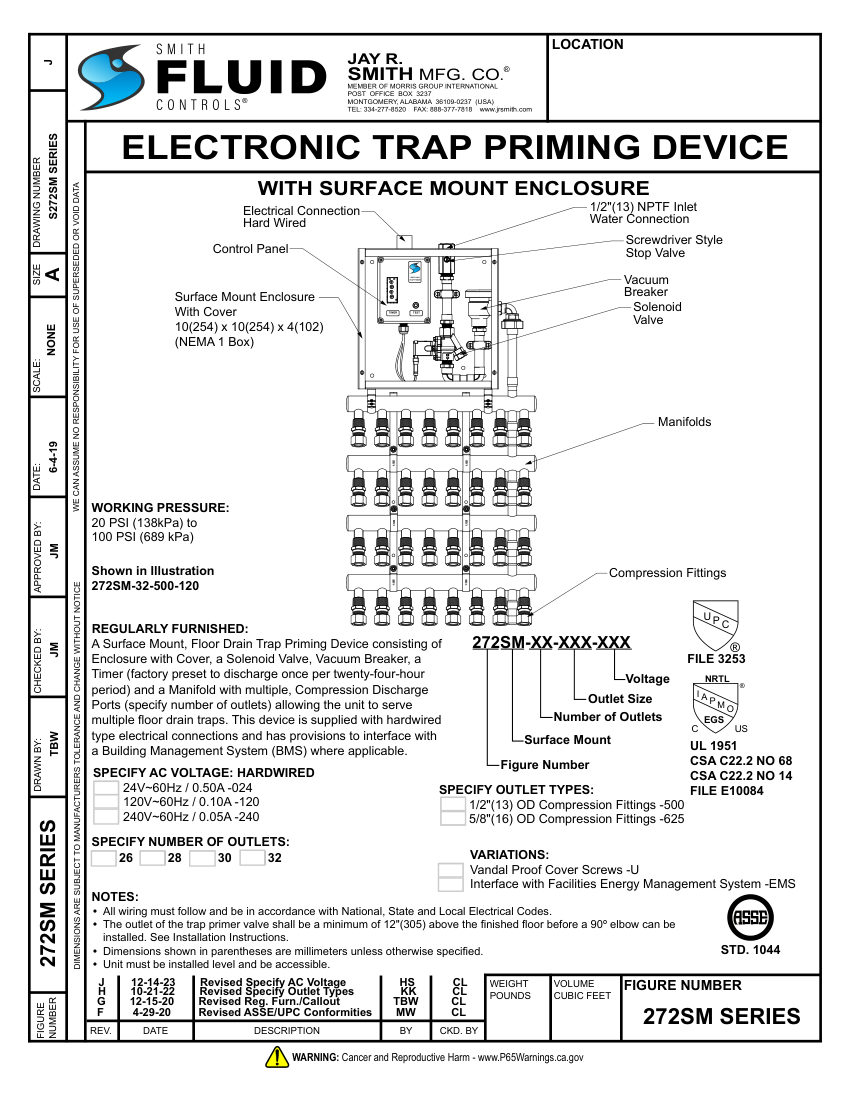

Jay R. Smith 272SM Trap Primer - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
272SM Trap Primer - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number272SM Trap Primer - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Electronic Trap Priming Device (Trap Primer). Model 272SM-32-500-120. Hard wired electrical connection; Includes solenoid valve and vacuum breaker; Surface mount enclosure with cover; Operating pressure range 20-100 PSI. connectionSize: 1/2" NPTF
End connectionCompression Fittings
Pressure Rating20 PSI to 100 PSI
MountingSurface Mount
Dimensions10 x 10 x 4 in
ComplianceNEMA 1.
