DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith3038-DID Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Drain Installation Device (Drainage). Model 3038-DID. Designed for 8" (203mm) top size enameled floor sinks; Designed for 8 1/2" (216mm) top size enameled floor sinks; Part of FormIt® Drain Installation Device series

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3038-DID-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

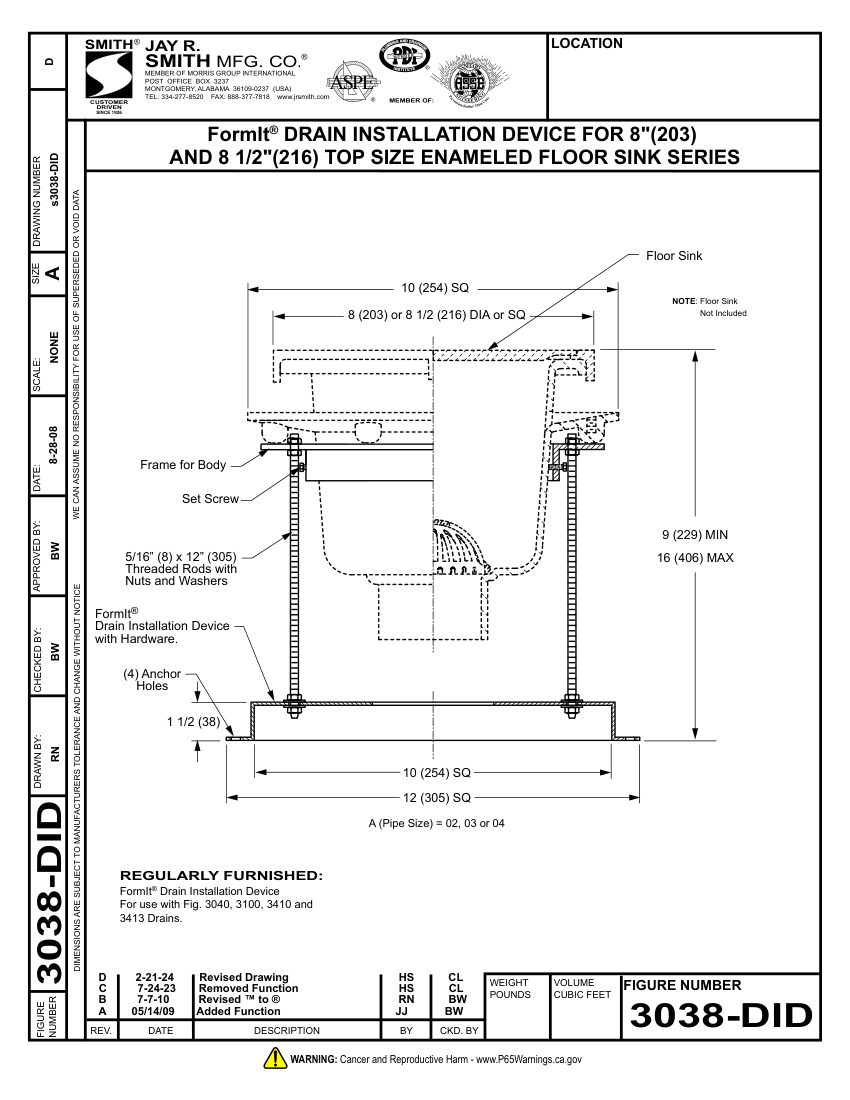

Jay R. Smith 3038-DID Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
3038-DID Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3038-DID Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Drain Installation Device (Drainage). Model 3038-DID. Designed for 8" (203mm) top size enameled floor sinks; Designed for 8 1/2" (216mm) top size enameled floor sinks; Part of FormIt® Drain Installation Device series
ManufacturerJay R. Smith Mfg. Co.. connectionSize: 8" (203mm) and 8 1/2" (216mm).
