DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith3040 Waste Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Floor & Indirect Waste Drain (Waste Drain). Model S3040. Acid Resistant Coated; Medium Receptors; Conforms to ASME A112.6.7/CSA B79.7; 8 1/2" (215) Top Diameter. material: Nickel Bronze

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3040-Waste-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

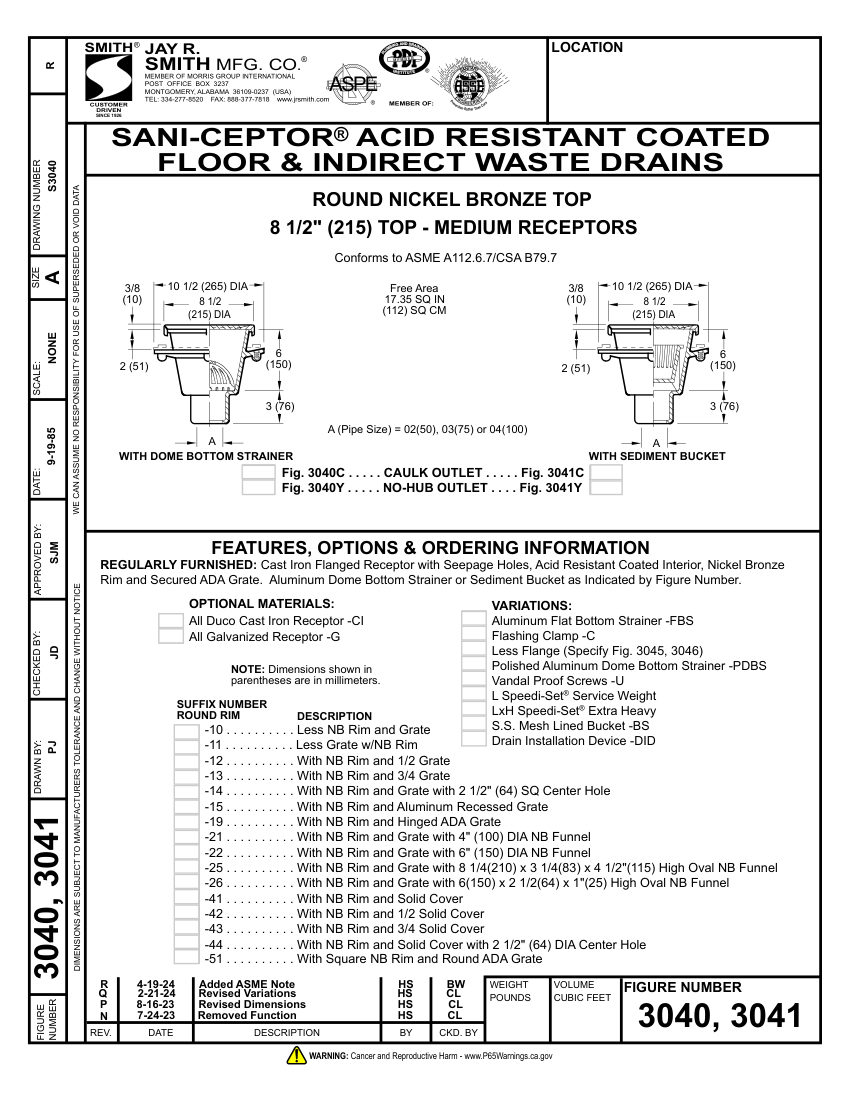

Jay R. Smith 3040 Waste Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
3040 Waste Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3040 Waste Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Floor & Indirect Waste Drain (Waste Drain). Model S3040. Acid Resistant Coated; Medium Receptors; Conforms to ASME A112.6.7/CSA B79.7; 8 1/2" (215) Top Diameter. material: Nickel Bronze
FinishRound Nickel Bronze Top
MountingFloor
Dimensions8 1/2" (215) Top
ComplianceASME A112.6.7/CSA B79.7.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
