Jay R. Smith3140-3161 Waste Drain - Jay R. Smith Mfg. Co

Jay R. Smith Acid Resistant Coated Floor & Indirect Waste Drain (Floor Drain). Model S3140. Acid resistant coated; Square top design; 12 1/2 inch top diameter; Available in medium, deep, and extra deep receptor depths. material: Nickel Bronze

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3140-3161-Waste-Drain---Jay-R.-Smith-Mfg.-Co.pdfData sheet

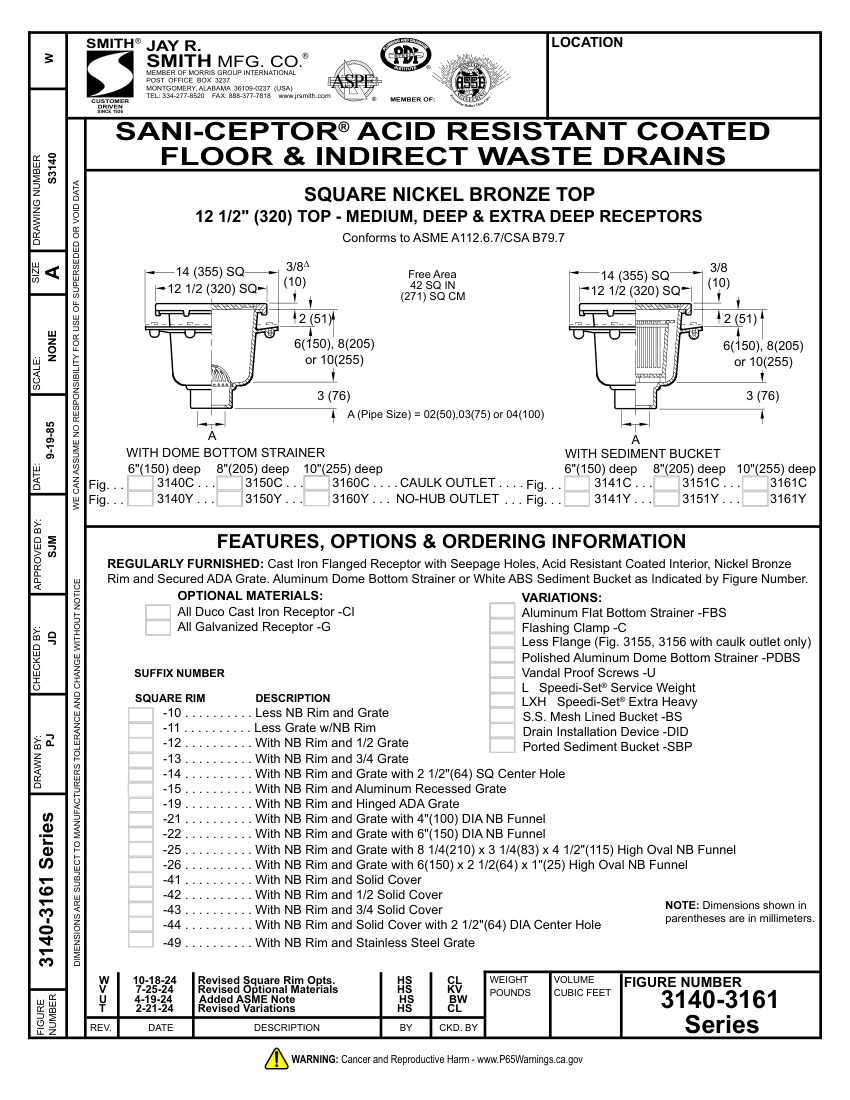

Jay R. Smith 3140-3161 Waste Drain - Jay R. Smith Mfg. Co cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
3140-3161 Waste Drain - Jay R. Smith Mfg. Co
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3140-3161 Waste Drain - Jay R. Smith Mfg. Co
DescriptionJay R. Smith Acid Resistant Coated Floor & Indirect Waste Drain (Floor Drain). Model S3140. Acid resistant coated; Square top design; 12 1/2 inch top diameter; Available in medium, deep, and extra deep receptor depths. material: Nickel Bronze
FinishSquare Nickel
MountingMedium, Deep & Extra Deep Receptors
Dimensions12 1/2" (320) Top
ComplianceASM.
