Jay R. Smith3200, 3201 Waste Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Floor & Indirect Waste Drain (Waste Drain). Model 3200. Acid resistant coated; Extra deep receptors; Square top design; Nickel bronze construction. material: Nickel Bronze

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3200-3201-Waste-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

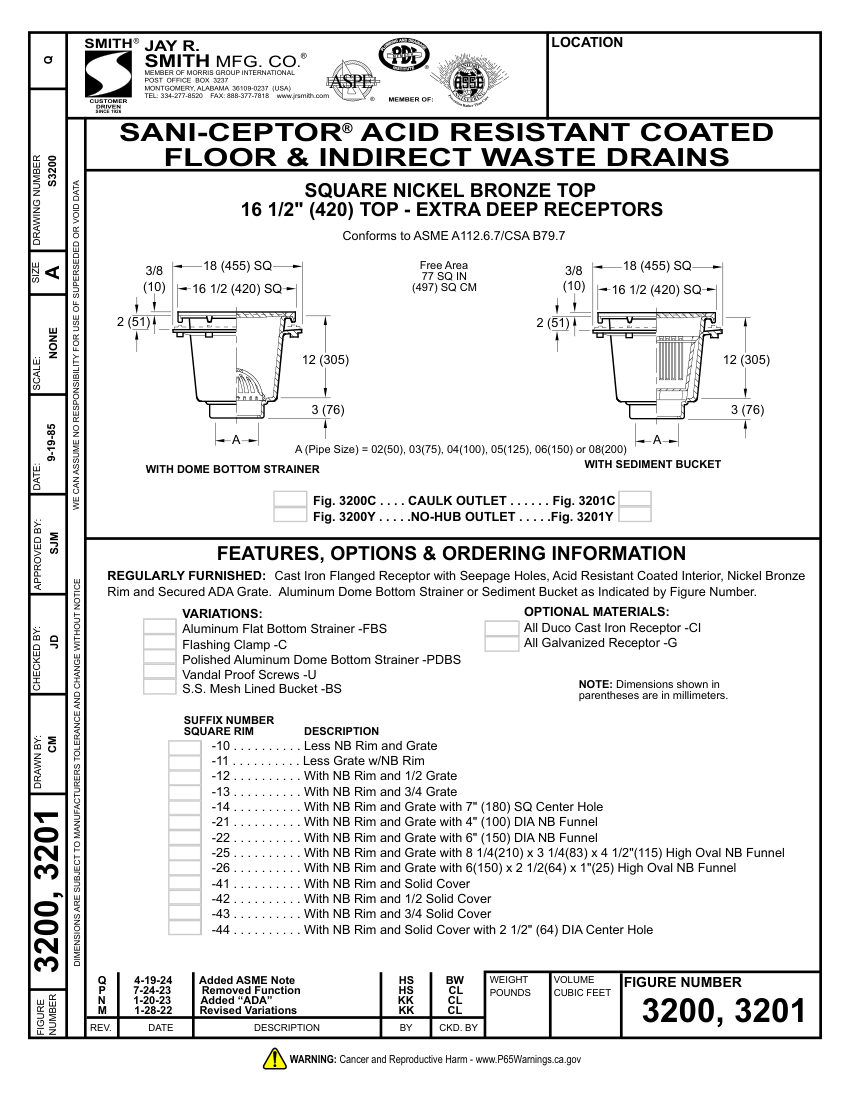

Jay R. Smith 3200, 3201 Waste Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
3200, 3201 Waste Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3200, 3201 Waste Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Floor & Indirect Waste Drain (Waste Drain). Model 3200. Acid resistant coated; Extra deep receptors; Square top design; Nickel bronze construction. material: Nickel Bronze
FinishSquare Nickel
MountingFloor
Dimensions16 1/2" (420) Top
ComplianceASME.
  • Official cut sheet, indexed
