Jay R. Smith3250, 3251 Waste Drain - Jay R. Smith Mfg. C

Jay R. Smith Floor & Indirect Waste Drain (Waste Drain). Model S3250. Rectangular Nickel Bronze Top; Extra Large Deep Receptors

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3250-3251-Waste-Drain---Jay-R.-Smith-Mfg.-C.pdfData sheet

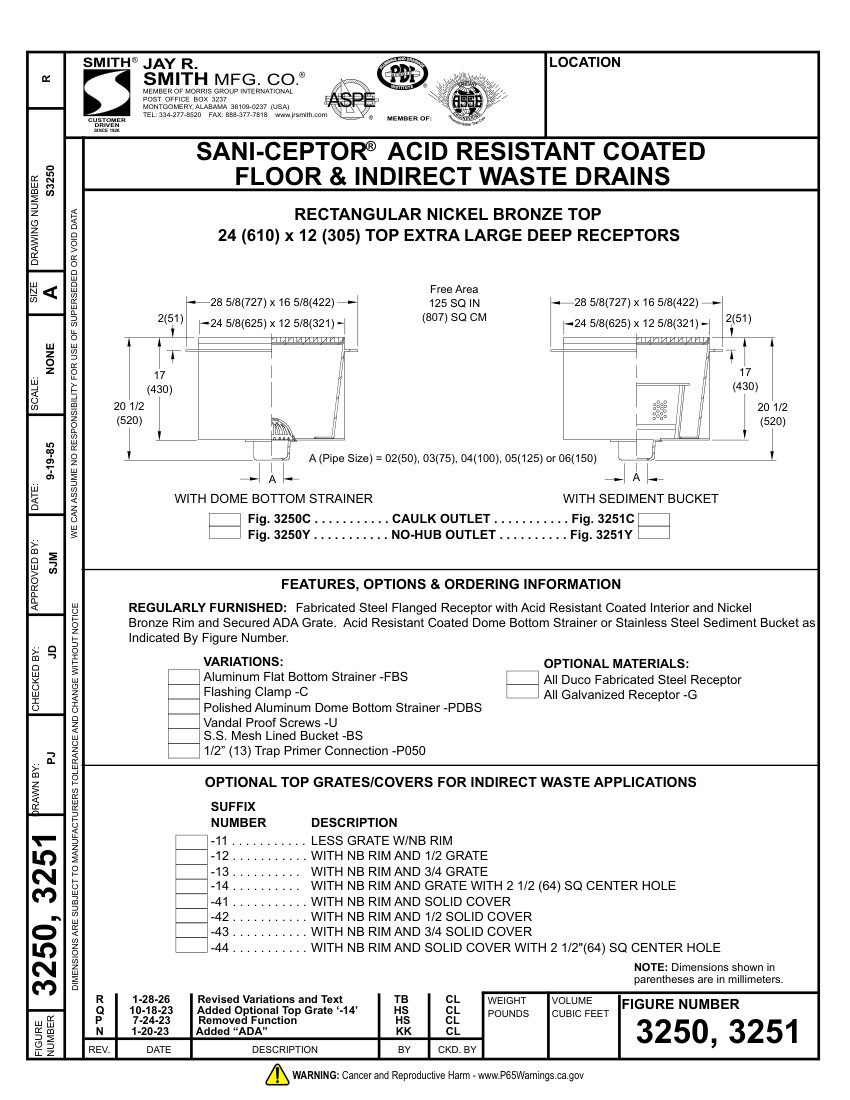

Jay R. Smith 3250, 3251 Waste Drain - Jay R. Smith Mfg. C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
3250, 3251 Waste Drain - Jay R. Smith Mfg. C
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3250, 3251 Waste Drain - Jay R. Smith Mfg. C
DescriptionJay R. Smith Floor & Indirect Waste Drain (Waste Drain). Model S3250. Rectangular Nickel Bronze Top; Extra Large Deep Receptors
Free Area125 SQ IN; Acid Resistant Coated. material: Nickel Bronze
FinishAcid Resistant Coated
MountingFloor
Dimensions24 (610) x 12 (305) Top; 28 5/8 (727) x 16 5/8 (422) Receptor.
