DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith3320, 3321 Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Acid Resistant Coated Floor & Indirect Waste Drain (Floor Drain). Model 3320. SKU 3320; Rectangular top dimensions 6" x 12"; Deep receptor design; Acid resistant coating. material: Acid Resistant Coated

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3320-3321-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

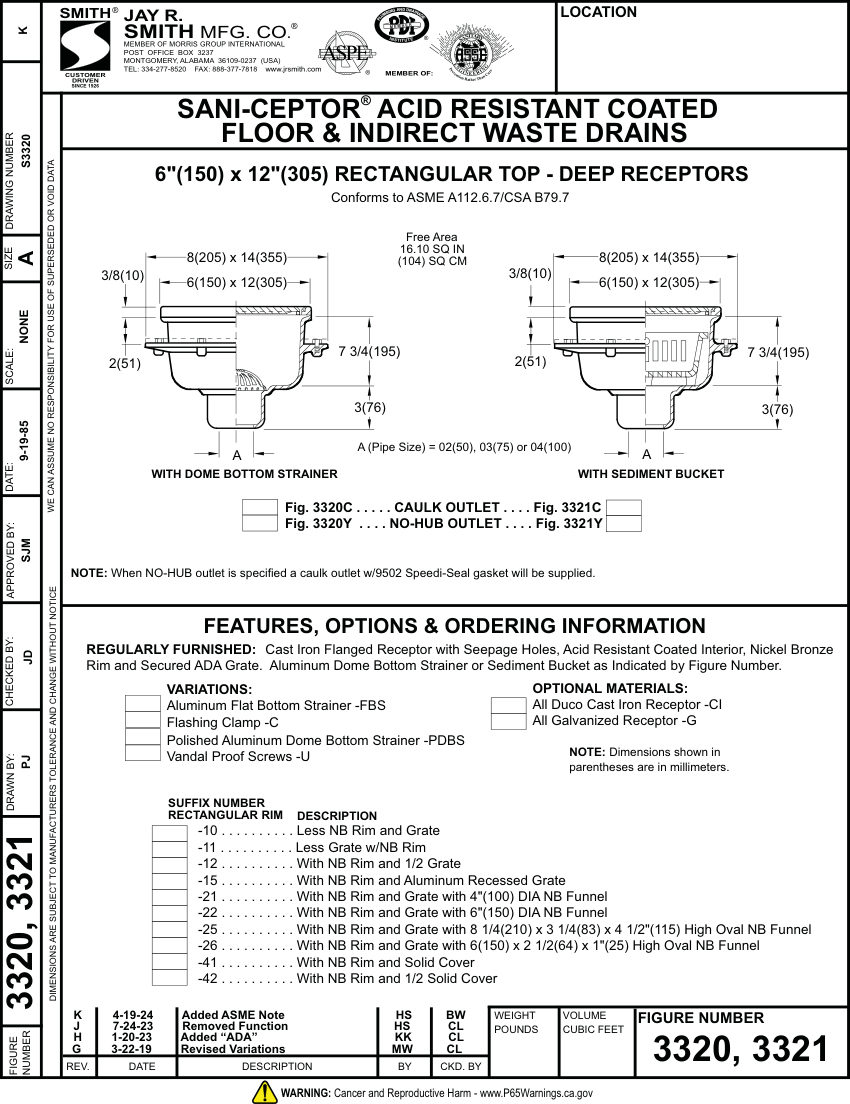

Jay R. Smith 3320, 3321 Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
3320, 3321 Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3320, 3321 Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Acid Resistant Coated Floor & Indirect Waste Drain (Floor Drain). Model 3320. SKU 3320; Rectangular top dimensions 6" x 12"; Deep receptor design; Acid resistant coating. material: Acid Resistant Coated
FinishAcid Resistant Coated
MountingFloor
Dimensions6" (150) x 12" (305) Rectangular Top.
