Jay R. Smith3403, 3404 Sanitary Drain

Jay R. Smith Floor Drain (Sanitary Drain). Model 3403. 8" (205mm) Round Top Shallow Receptor; Acid Resistant Coated

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3403-3404-Sanitary-Drain.pdfData sheet

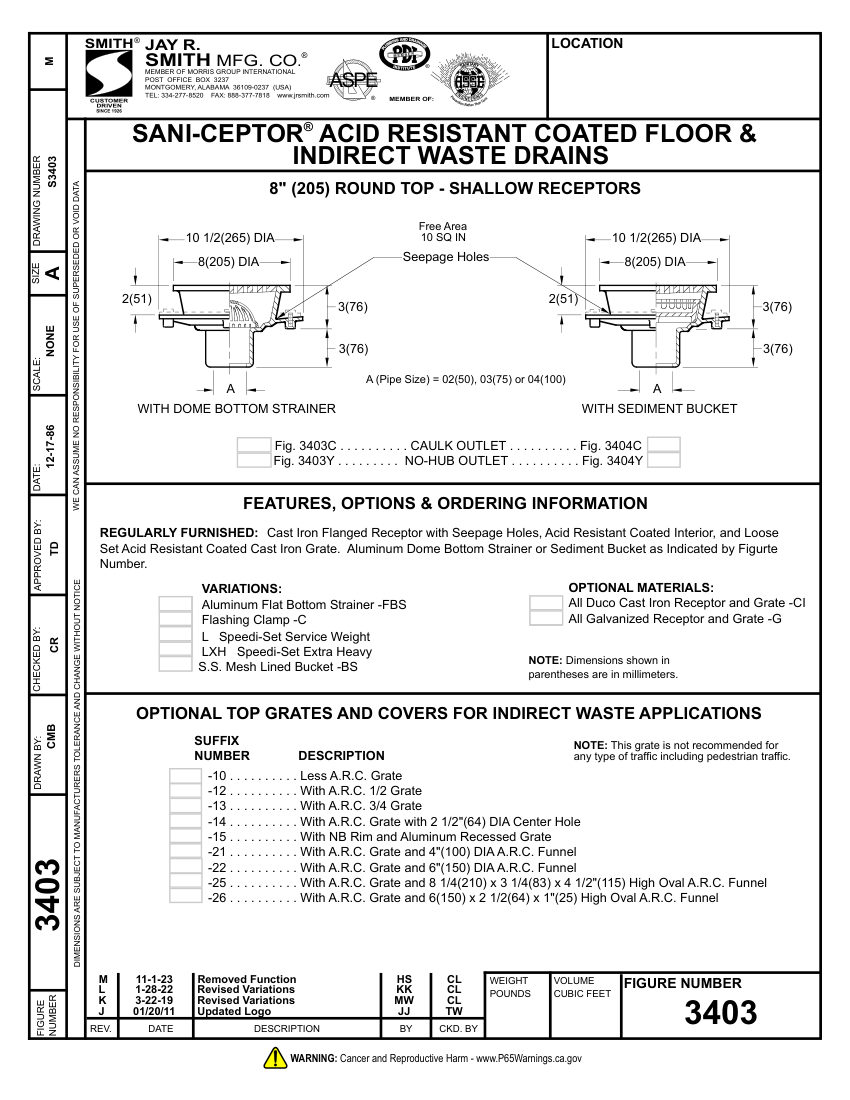

Jay R. Smith 3403, 3404 Sanitary Drain cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
3403, 3404 Sanitary Drain
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3403, 3404 Sanitary Drain
DescriptionJay R. Smith Floor Drain (Sanitary Drain). Model 3403. 8" (205mm) Round Top Shallow Receptor; Acid Resistant Coated
Free Area10 SQ IN
Open Diameter10 1/2" (265mm). material: Acid Resistant Coated
Connection size8" (205mm)
FinishAcid Resistant Coated
MountingShallow Receptor
Dimensions8" (205mm) Round Top
ComplianceASPE.
