DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith3960 Waste Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Indirect Waste Drain (Waste Drain). Model S3960. Roof-Ceptor indirect waste drain; Conforms to ASME A112.6.7/CSA B79.7; Medium depth receptor; Top dimension 7 1/4" (185 mm). dimensions: 7 1/4" (185) top - medium depth; 8 1/2" (215) dia

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3960-Waste-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

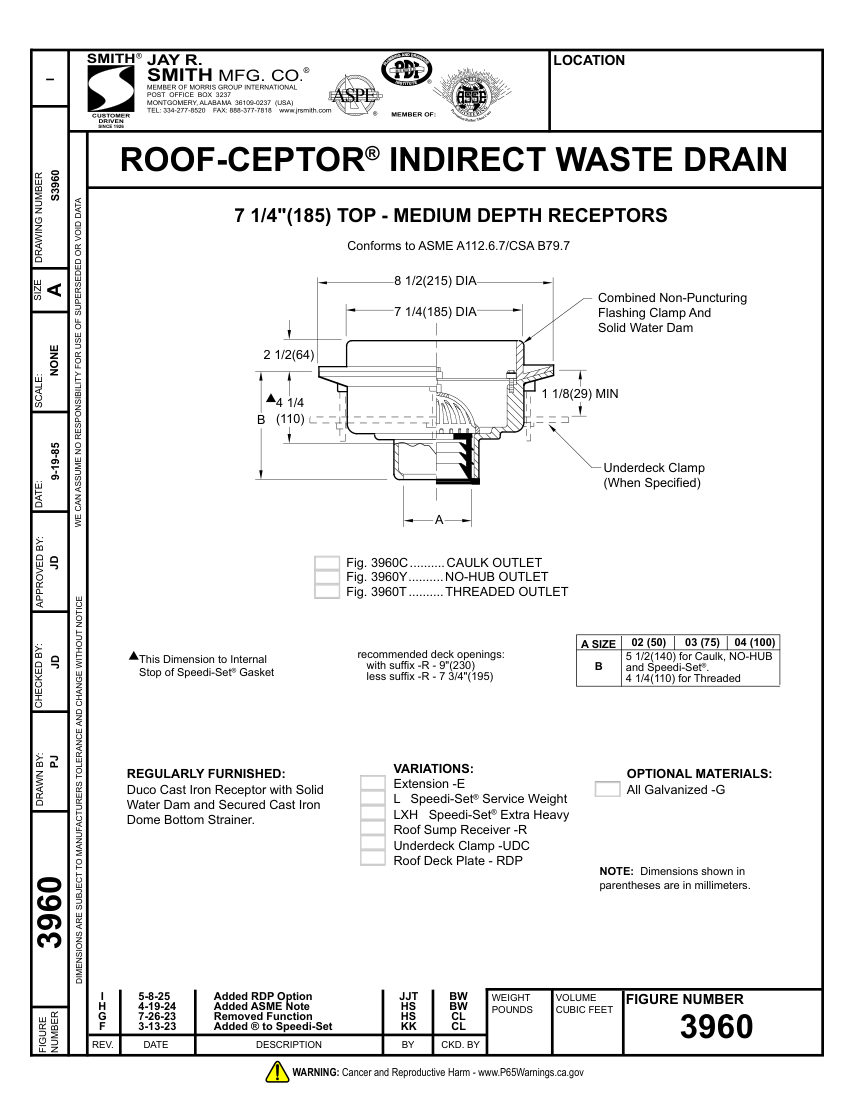

Jay R. Smith 3960 Waste Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
3960 Waste Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3960 Waste Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Indirect Waste Drain (Waste Drain). Model S3960. Roof-Ceptor indirect waste drain; Conforms to ASME A112.6.7/CSA B79.7; Medium depth receptor; Top dimension 7 1/4" (185 mm). dimensions: 7 1/4" (185) top - medium depth; 8 1/2" (215) dia
ComplianceASME A112.6.7/CSA B79.7.
