DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith420 Cleanout - Jay R. Smith Mfg. Co.

Jay R. Smith Floor Cleanout (Floor Cleanouts). Model Series 420. Round non-adjustable heavy-duty design; A.B.S. tapered threaded plug; Sized for service weight, no-hub, extra heavy cast iron, or PVC pipe; Plug sizes range from 3-1/2" to 4". material: Cast iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF420-Cleanout---Jay-R.-Smith-Mfg.-Co..pdfData sheet

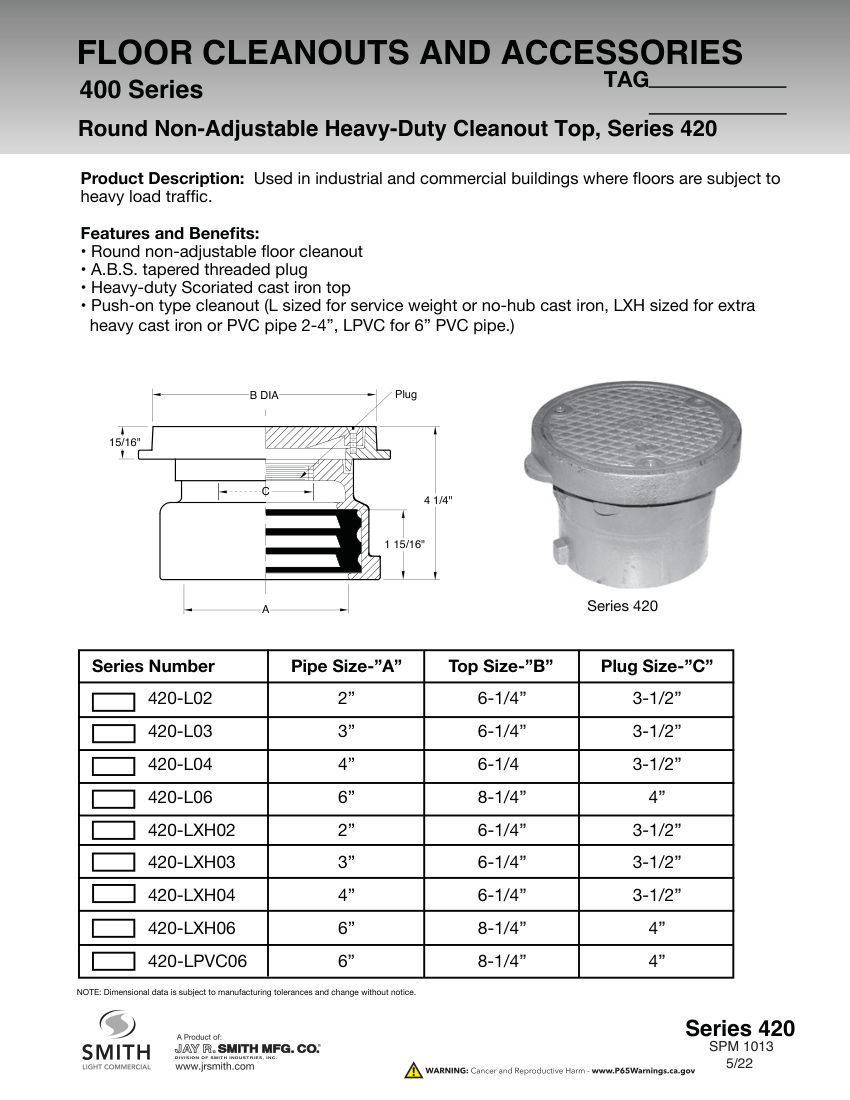

Jay R. Smith 420 Cleanout - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
420 Cleanout - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number420 Cleanout - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Floor Cleanout (Floor Cleanouts). Model Series 420. Round non-adjustable heavy-duty design; A.B.S. tapered threaded plug; Sized for service weight, no-hub, extra heavy cast iron, or PVC pipe; Plug sizes range from 3-1/2" to 4". material: Cast iron
Connection size2-6"
End connectionPush-on
FinishScoriated
MountingFloor
DimensionsTop Size: 6-1/4" or 8-1/4".
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
