DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith9630-SBG thru 9632-SBG Stainless Steel Drain

Jay R. Smith General Purpose Area/Floor Drain (Floor Drain). Model 9630-SBG - 9632-SBG. Stainless Steel construction; 12" (305) square top bar grate; General purpose area/floor drain; Model range 9630-SBG to 9632-SBG. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9630-SBG-thru-9632-SBG-Stainless-Steel-Drain.pdfData sheet

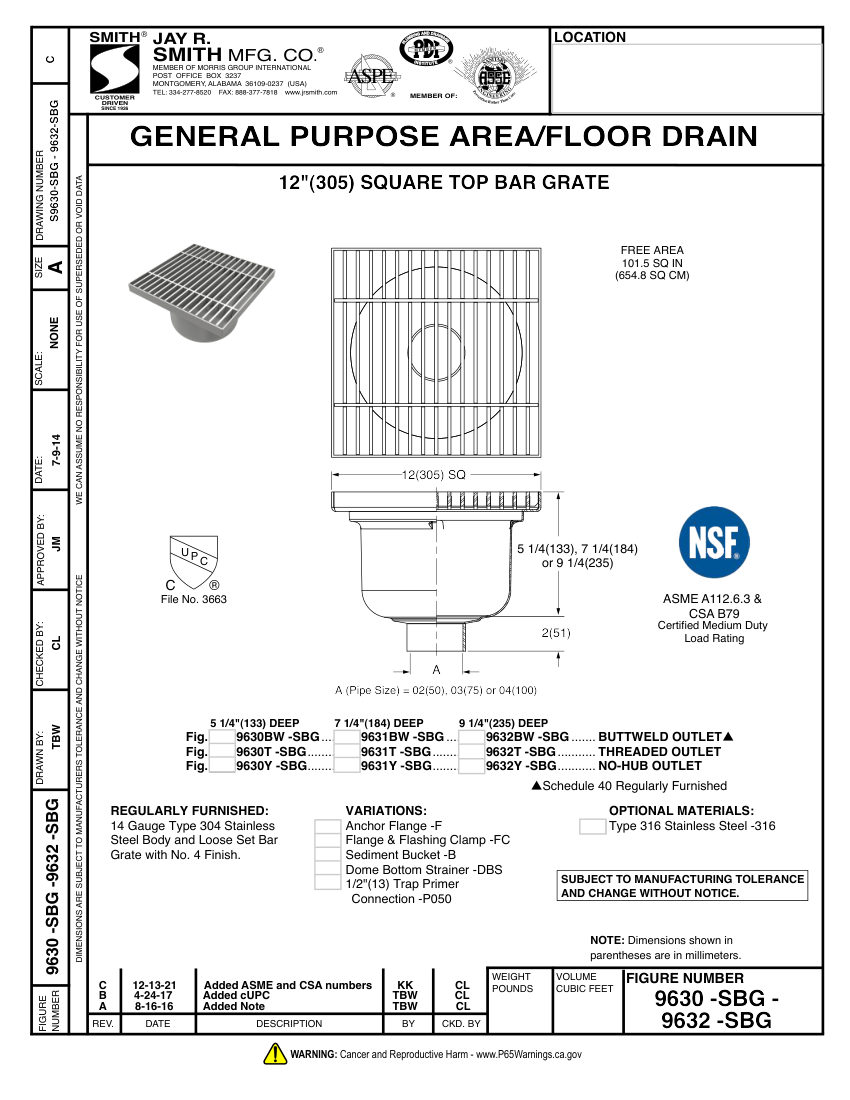

Jay R. Smith 9630-SBG thru 9632-SBG Stainless Steel Drain cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9630-SBG thru 9632-SBG Stainless Steel Drain
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9630-SBG thru 9632-SBG Stainless Steel Drain
DescriptionJay R. Smith General Purpose Area/Floor Drain (Floor Drain). Model 9630-SBG - 9632-SBG. Stainless Steel construction; 12" (305) square top bar grate; General purpose area/floor drain; Model range 9630-SBG to 9632-SBG. material: Stainless Steel
Dimensions12" (305) Square Top Bar Grate.
