DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

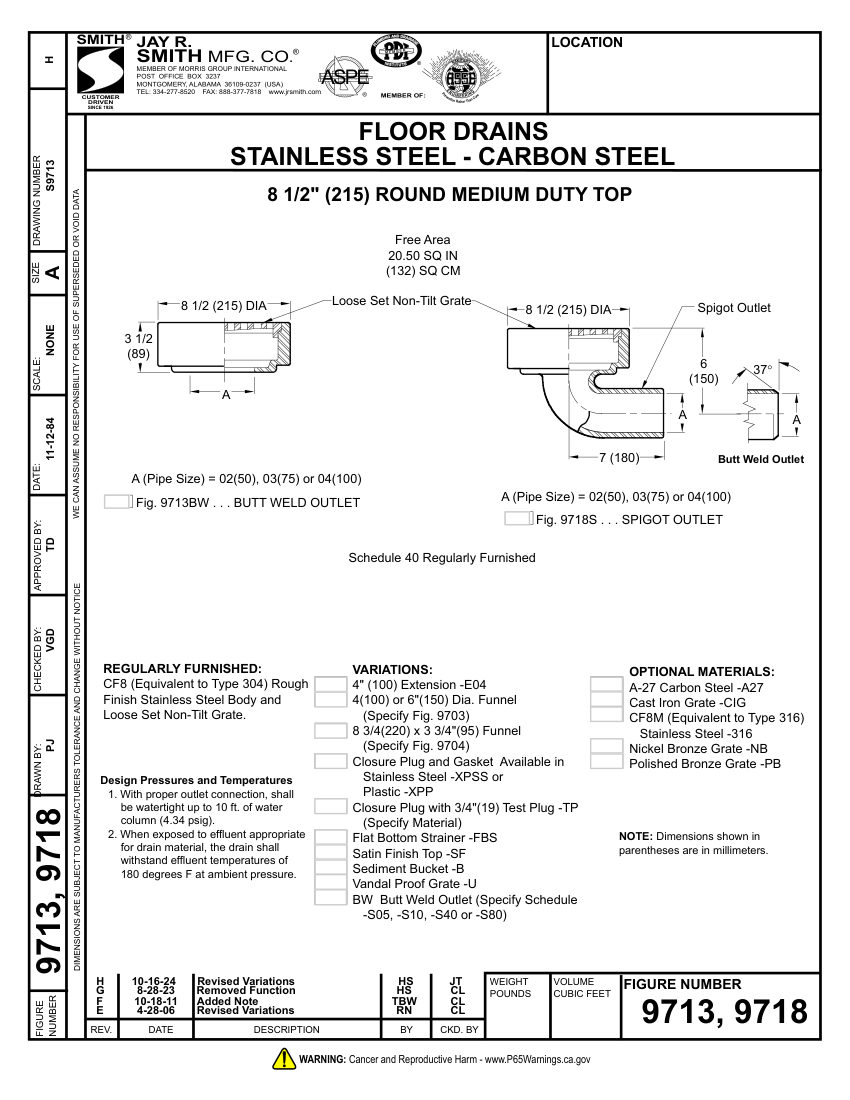

Jay R. Smith9713 Drain - Jay R. Smith Mfg. Co.
Jay R. Smith Floor Drain. Model S9713. 8 1/2" (215) Round Medium Duty Top
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Jay R. Smith
- Catalog no.
- 9713 Drain - Jay R. Smith Mfg. Co.
- Product type
- Plumbing
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 9713 Drain - Jay R. Smith Mfg. Co. |
|---|---|
| Description | Jay R. Smith Floor Drain. Model S9713. 8 1/2" (215) Round Medium Duty Top |
| Free Area | 20.50 SQ IN (132 SQ CM); Loose Set Non-Tilt Grate |
| Material | Stainless Steel / Carbon Steel. material: Stainless Steel, Carbon Steel |
| Mounting | Loose Set Non-Tilt Grate |
| Dimensions | 8 1/2" (215) Round. |
