DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith9735 Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Bin and Drain (Drain). Model 9735. 8 1/2" (215) round adjustable top; 11" (280) diameter; Solid scoriated cover and closure plug; Stainless steel and carbon steel construction. material: Stainless Steel, Carbon Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9735-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

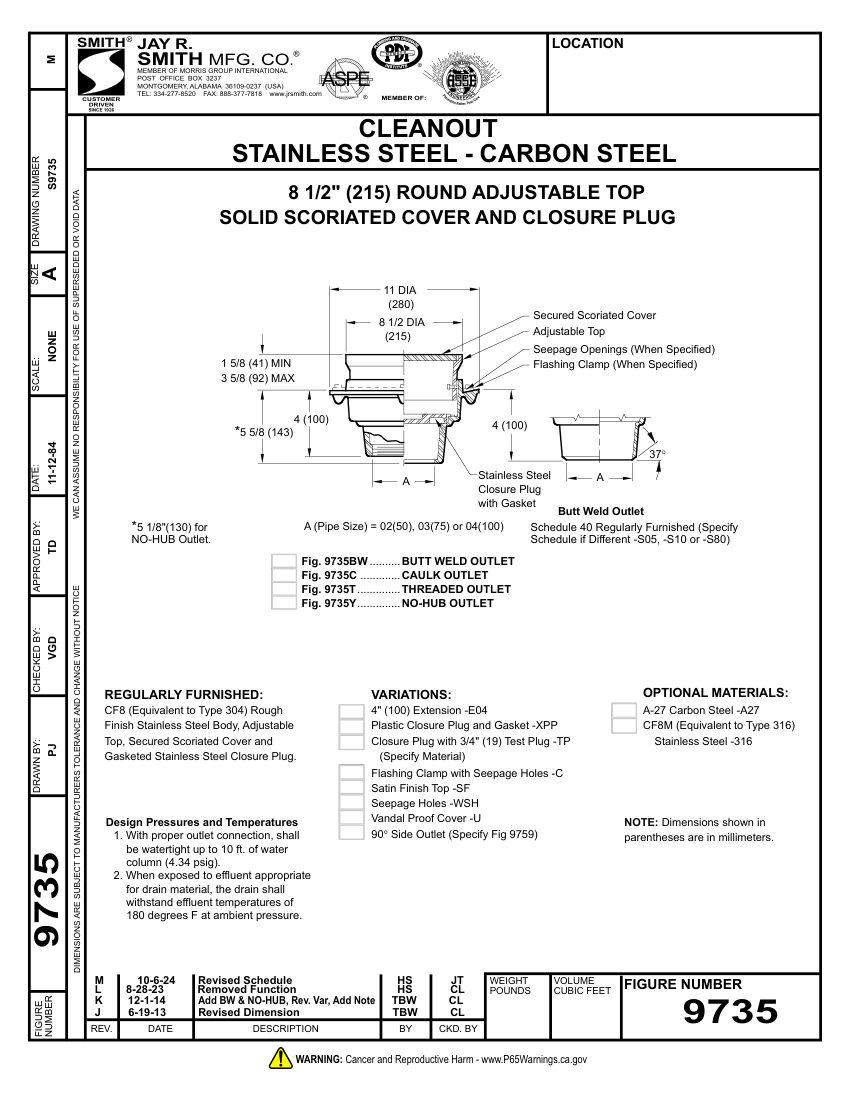

Jay R. Smith 9735 Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9735 Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9735 Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Bin and Drain (Drain). Model 9735. 8 1/2" (215) round adjustable top; 11" (280) diameter; Solid scoriated cover and closure plug; Stainless steel and carbon steel construction. material: Stainless Steel, Carbon Steel
Dimensions8 1/2" (215) Round Adjustable Top, 11" (280) Dia.
