DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith9750 Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Integral Trap Drain (Drain). Model 9750. Integral trap design; Floor level cleanout; Free area 20.50 sq in; Available in Stainless Steel and Carbon Steel. material: Stainless Steel, Carbon Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9750-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

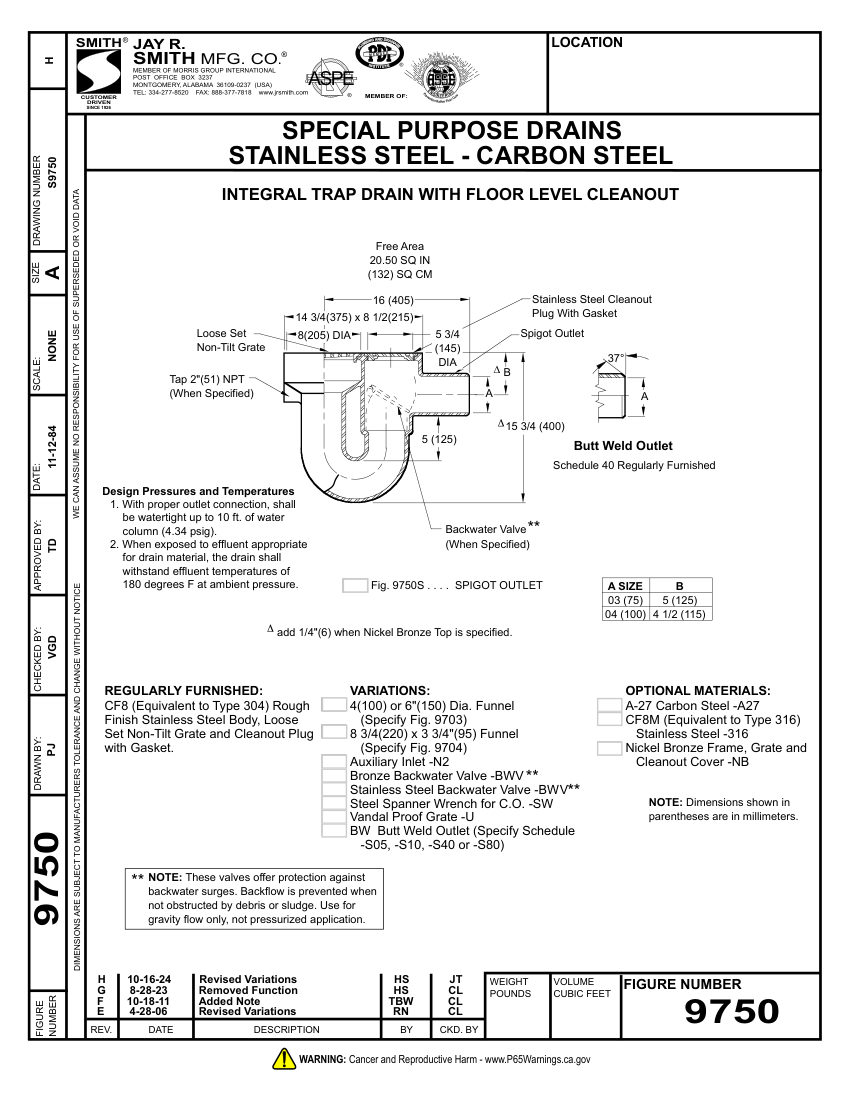

Jay R. Smith 9750 Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9750 Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9750 Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Integral Trap Drain (Drain). Model 9750. Integral trap design; Floor level cleanout; Free area 20.50 sq in; Available in Stainless Steel and Carbon Steel. material: Stainless Steel, Carbon Steel
MountingFloor Level Cleanout
DimensionsFree Area 20.50 SQ IN (132 SQ CM).
