Jay R. Smith(Canada) 1330-Q-Y Drain - Jay R. Smith Mfg. Co.

Jay R. Smith General Purpose Roof Drain (Roof Drain). Model S1330-Q-Y-CAN. 8 1/2" Diameter; Low Profile Dome; Stainless Steel Construction; Free Area 41.5 SQ IN. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCanada-1330-Q-Y-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

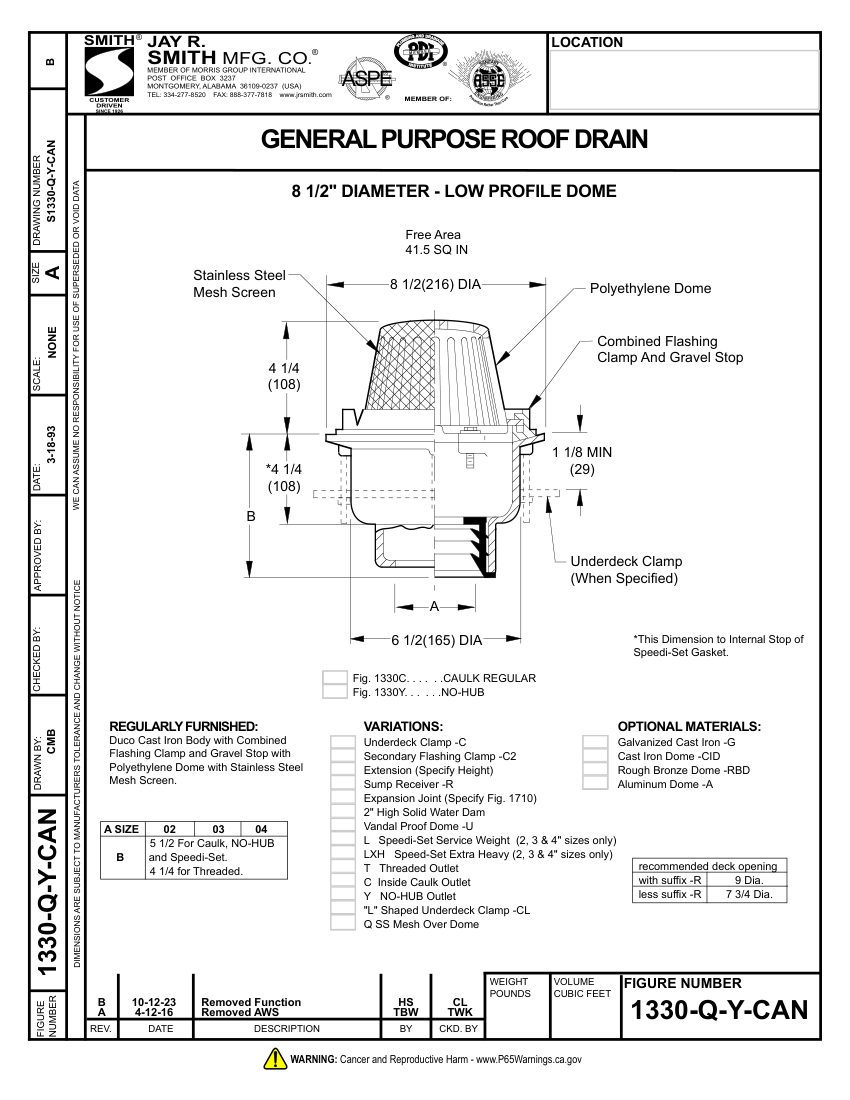

Jay R. Smith (Canada) 1330-Q-Y Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
(Canada) 1330-Q-Y Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number(Canada) 1330-Q-Y Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith General Purpose Roof Drain (Roof Drain). Model S1330-Q-Y-CAN. 8 1/2" Diameter; Low Profile Dome; Stainless Steel Construction; Free Area 41.5 SQ IN. material: Stainless Steel
Connection size8 1/2" Diameter
MountingLow Profile Dome
DimensionsFree Area 41.5 SQ IN.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
