DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. SmithDX3001-DX3009 Waste Drain

Jay R. Smith Stainless Steel Floor, Area & Indirect Waste Drain (Sanitary Drains). Model SDX3001. 12" (304mm) Stainless Steel Square Top; Wide Flange Design; 17 1/2" (445mm) Square Flange; Suitable for Floor, Area, and Indirect Waste Applications. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDX3001-DX3009-Waste-Drain.pdfData sheet

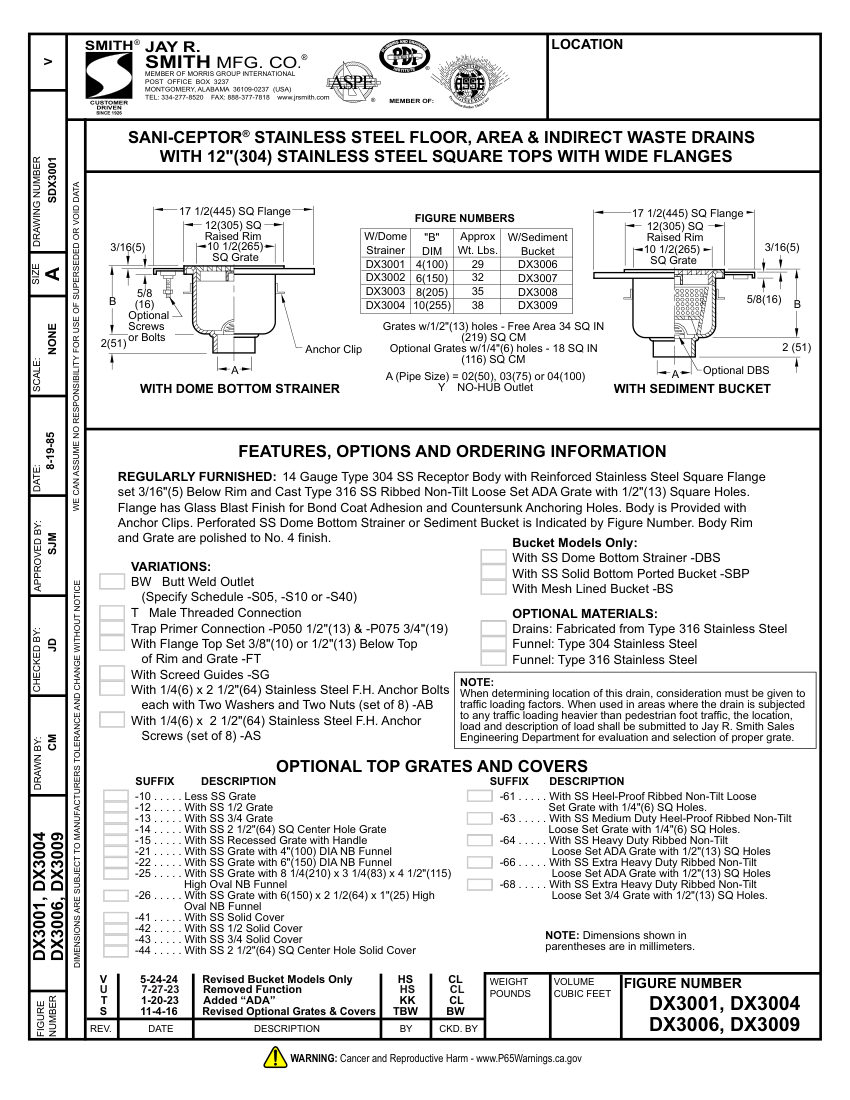

Jay R. Smith DX3001-DX3009 Waste Drain cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
DX3001-DX3009 Waste Drain
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDX3001-DX3009 Waste Drain
DescriptionJay R. Smith Stainless Steel Floor, Area & Indirect Waste Drain (Sanitary Drains). Model SDX3001. 12" (304mm) Stainless Steel Square Top; Wide Flange Design; 17 1/2" (445mm) Square Flange; Suitable for Floor, Area, and Indirect Waste Applications. material: Stainless Steel
FinishStainless Steel
MountingFloor
Dimensions17 1/2" (445mm) Square Top.
