Kohler27618-10L

Kohler Frameless pivot shower door (Composed). Model K-27618-10L. Frameless design with 3/8" (10 mm) tempered glass; CleanCoat® technology for water and dirt repellency; Fits opening widths 58"–58-3/4" (1473–1492 mm); Includes full-length magnetic seal and 7/8" (22 mm) aluminum threshold. material: 3/8" (10 mm) thick Crystal Clear tempered glass, anodized aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF27618-10L.pdfData sheet

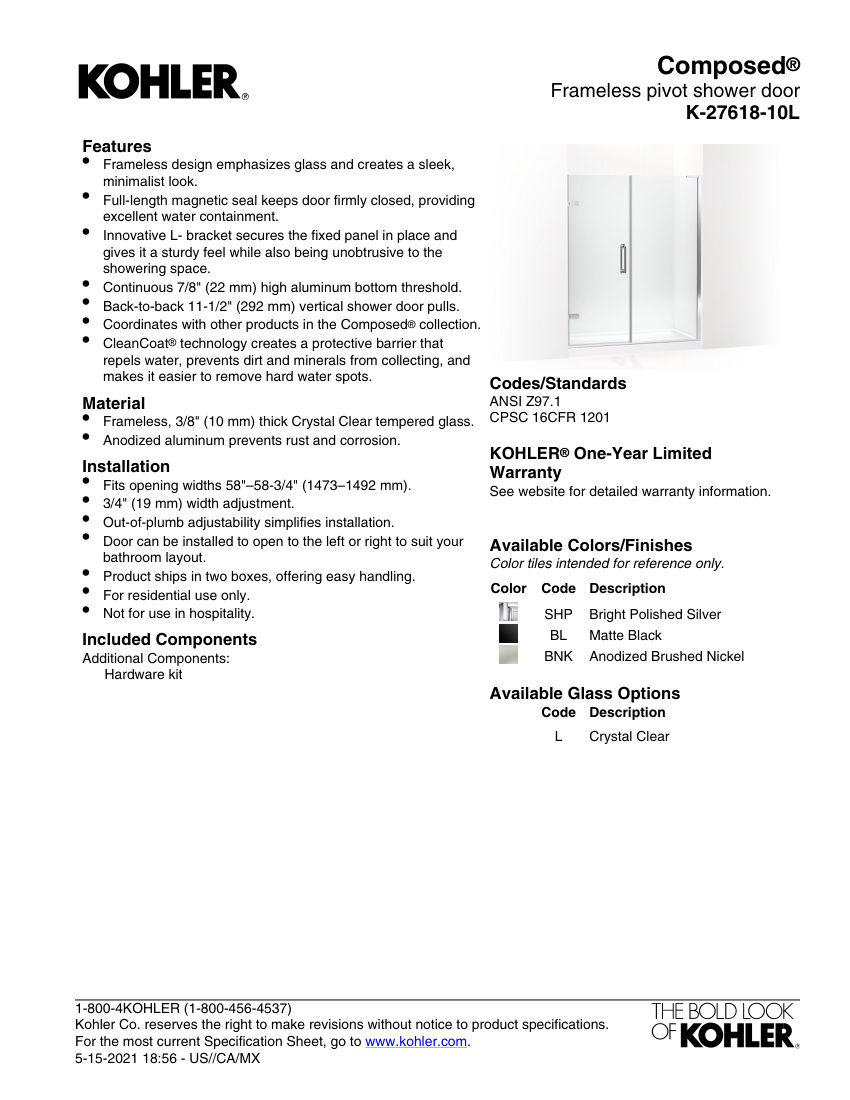

Kohler 27618-10L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
27618-10L
Product type
Plumbing
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog number27618-10L
DescriptionKohler Frameless pivot shower door (Composed). Model K-27618-10L. Frameless design with 3/8" (10 mm) tempered glass; CleanCoat® technology for water and dirt repellency; Fits opening widths 58"–58-3/4" (1473–1492 mm); Includes full-length magnetic seal and 7/8" (22 mm) aluminum threshold. material: 3/8" (10 mm) thick Crystal Clear tempered glass, anodized aluminum
FinishBright Polished Silver, Matte Black, Anodized Brushed Nickel
MountingPivot, L-bracket, magnetic seal
Dimensions71-3/4" (1822 mm) height, fits 58"–58-3/4" (1473–1492 mm) opening
ComplianceANSI Z97.1, CPSC 16CFR 1201.
