KohlerK-28209 — Anthem Two Port Digital Thermostatic Valve28209

Kohler Two-port digital thermostatic valve (Anthem). Model K-28209. Digitally controlled thermostatic mixing valve with antiscald protection; Two independently controllable 1/2" outlets; Low flow mode limits total flow to 1.75 gpm (6.6 lpm); Requires 120 V, 1 A, 60 Hz electrical service with GFCI protection. material: Reinforced engineering-grade thermoplastic body, brass tube connections

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF28209.pdfData sheet

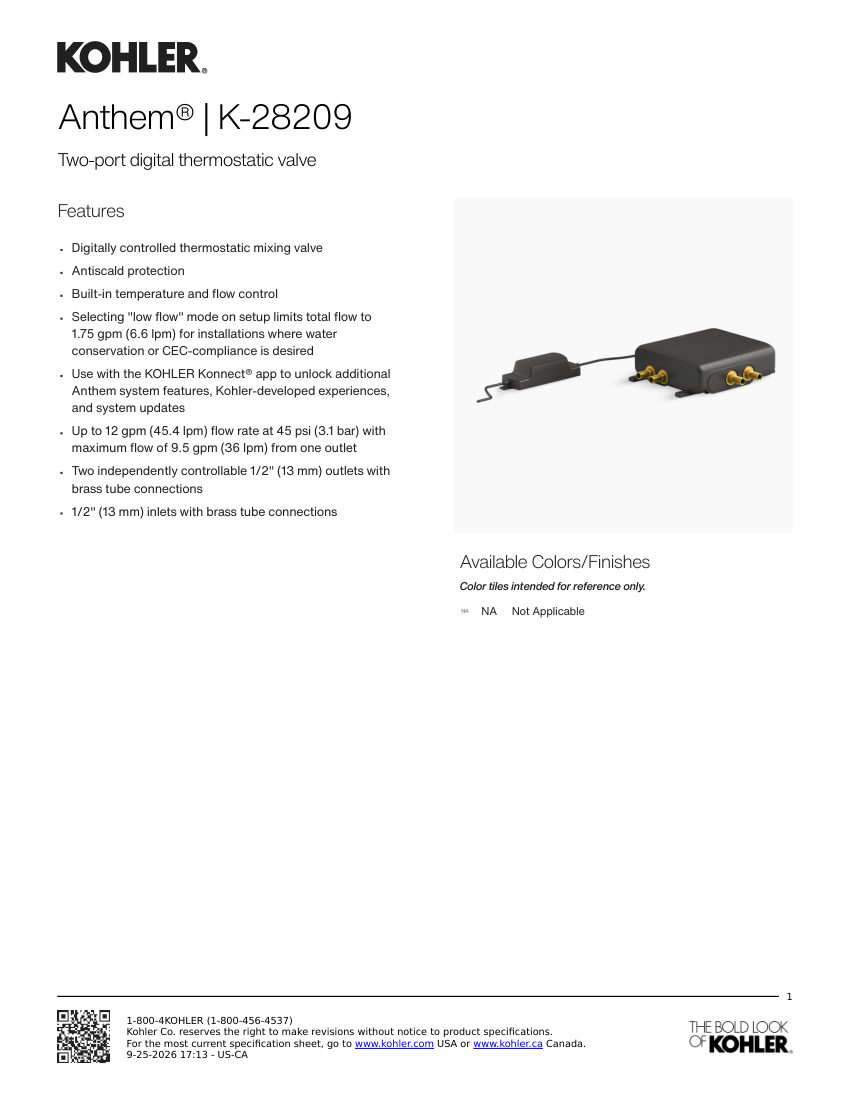

Kohler 28209 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
28209
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number28209
DescriptionKohler Two-port digital thermostatic valve (Anthem). Model K-28209. Digitally controlled thermostatic mixing valve with antiscald protection; Two independently controllable 1/2" outlets; Low flow mode limits total flow to 1.75 gpm (6.6 lpm); Requires 120 V, 1 A, 60 Hz electrical service with GFCI protection. material: Reinforced engineering-grade thermoplastic body, brass tube connections
Connection size1/2" (13 mm)
End connectionBrass tube connections
Pressure RatingMax Static 125 psi (8.6 bar), Min Operating 15 psi (1 bar)
Flow RateMax 12 gpm (45.4 lpm) at 45 psi (3.1 bar); dimension
