DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

KohlerK-28210 — Anthem Three Port Digital Thermostatic Valve28210

Kohler Three-port digital thermostatic valve (Anthem). Model K-28210. Digitally controlled thermostatic mixing valve with antiscald protection; Three independently controllable 1/2" outlets; Low flow mode limits total flow to 1.75 gpm (6.6 lpm); Requires 120 V, 1 A, 60 Hz electrical service with GFCI protection. material: Reinforced engineering-grade thermoplastic body

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF28210.pdfData sheet

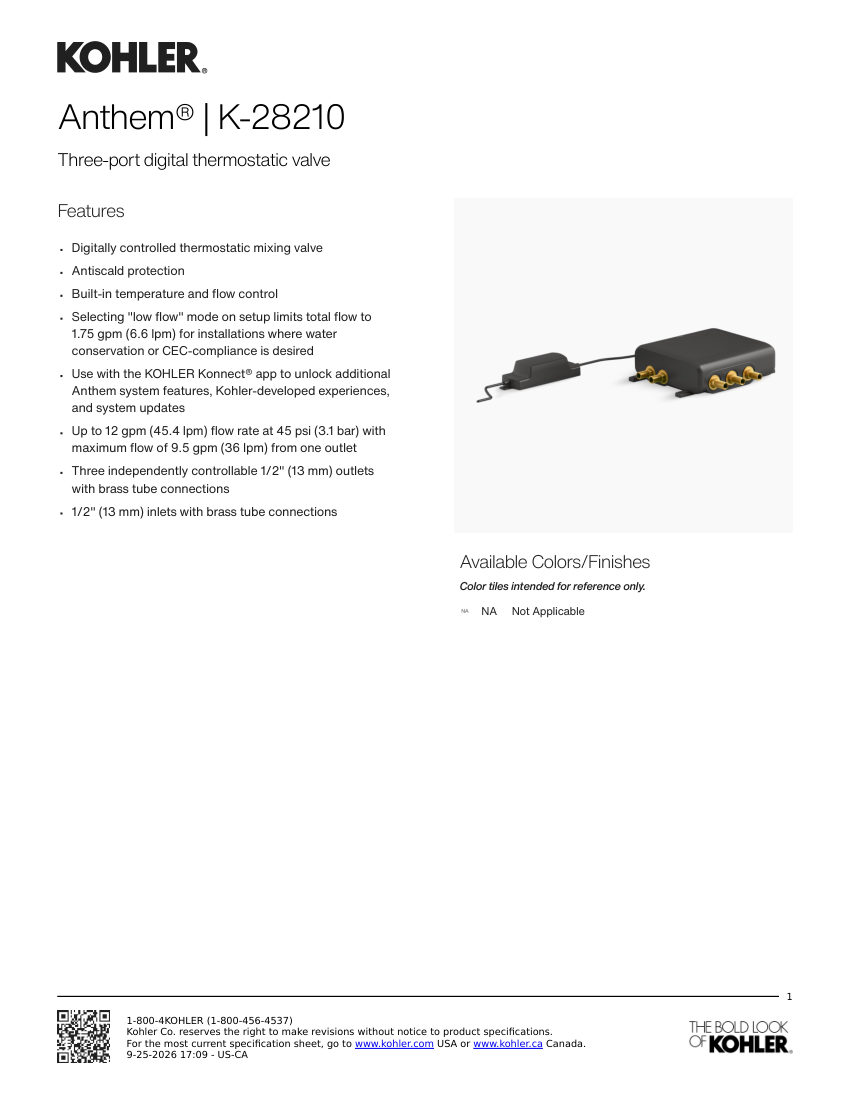

Kohler 28210 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
28210
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number28210
DescriptionKohler Three-port digital thermostatic valve (Anthem). Model K-28210. Digitally controlled thermostatic mixing valve with antiscald protection; Three independently controllable 1/2" outlets; Low flow mode limits total flow to 1.75 gpm (6.6 lpm); Requires 120 V, 1 A, 60 Hz electrical service with GFCI protection. material: Reinforced engineering-grade thermoplastic body
Connection size1/2" (13 mm)
End connectionBrass tube connections
Pressure RatingMax static 125 psi (8.6 bar); Min operating 15 psi (1 bar)
Flow RateMax 12 gpm (45.4 lpm) at 45 psi; Min 0.9 gpm (3.4 lpm)
Dimensions8-5/
