DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

KohlerK-28212 — Anthem Six Port Digital Thermostatic Valve28212

Kohler Six-port digital thermostatic valve (Anthem). Model K-28212. Digitally controlled thermostatic mixing valve with antiscald protection; Six independently controllable 1/2" outlets; Low flow mode limits total flow to 1.75 gpm (6.6 lpm); Requires 120 V, 1.6 A, 60 Hz electrical service with GFCI. material: Reinforced engineering-grade thermoplastic body, brass tube connections

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF28212.pdfData sheet

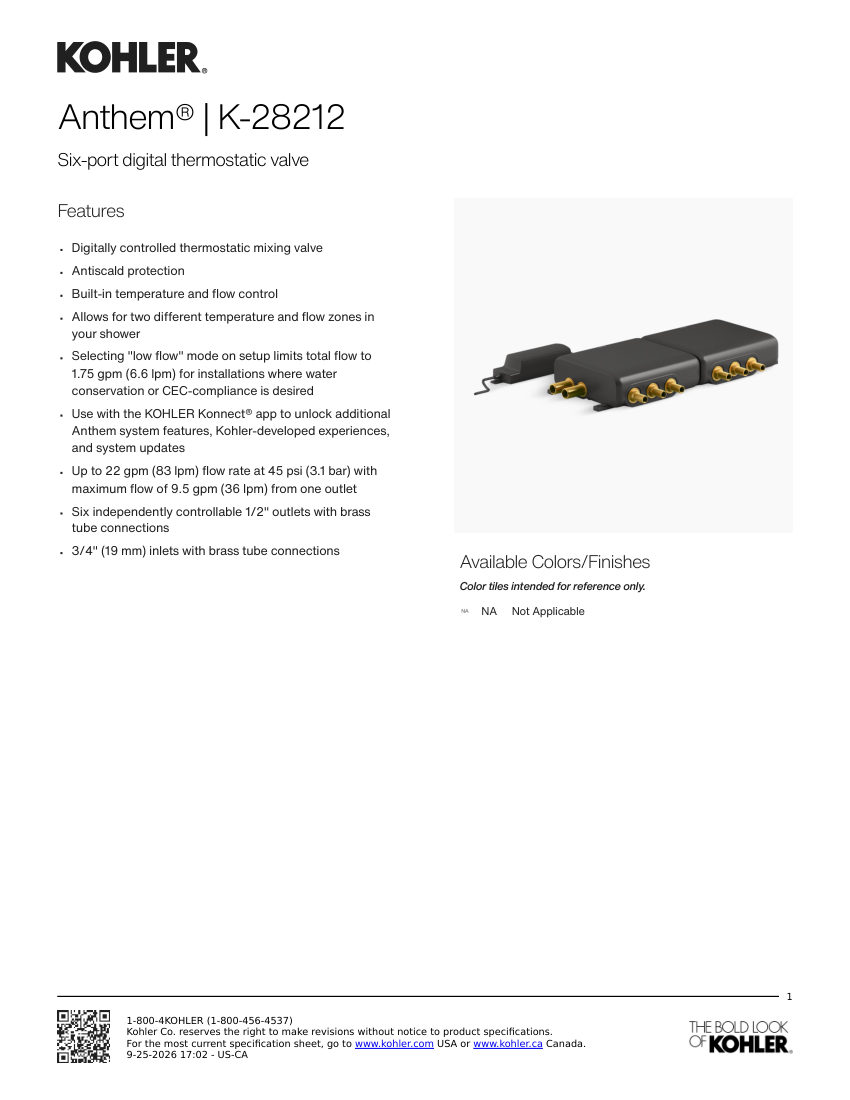

Kohler 28212 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
28212
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number28212
DescriptionKohler Six-port digital thermostatic valve (Anthem). Model K-28212. Digitally controlled thermostatic mixing valve with antiscald protection; Six independently controllable 1/2" outlets; Low flow mode limits total flow to 1.75 gpm (6.6 lpm); Requires 120 V, 1.6 A, 60 Hz electrical service with GFCI. material: Reinforced engineering-grade thermoplastic body, brass tube connections
Connection size3/4" inlets, 1/2" outlets
End connectionBrass tube connections
Pressure RatingMax static 125 psi (8.6 bar), Min operating 15 psi (1 bar)
Flow RateMax 22.5 gpm (85.2 l/min) at 45 psi; dimensions:
