DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

KohlerK-28304-K — Rite Temp Thermostatic Valve Body And Cartridge Kit28304-K

Kohler Thermostatic valve body and cartridge kit (Rite-Temp). Model K-28304-K. Includes valve body, thermostatic cartridge, rough-in guide, and mud guard; Single lever design cycles from off through cold to hot; One-piece cartridge design simplifies installation and maintenance; Adjustable high-temperature limit stop to control maximum water temperature. material: Forged dezincification-resistant brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF28304-K.pdfData sheet

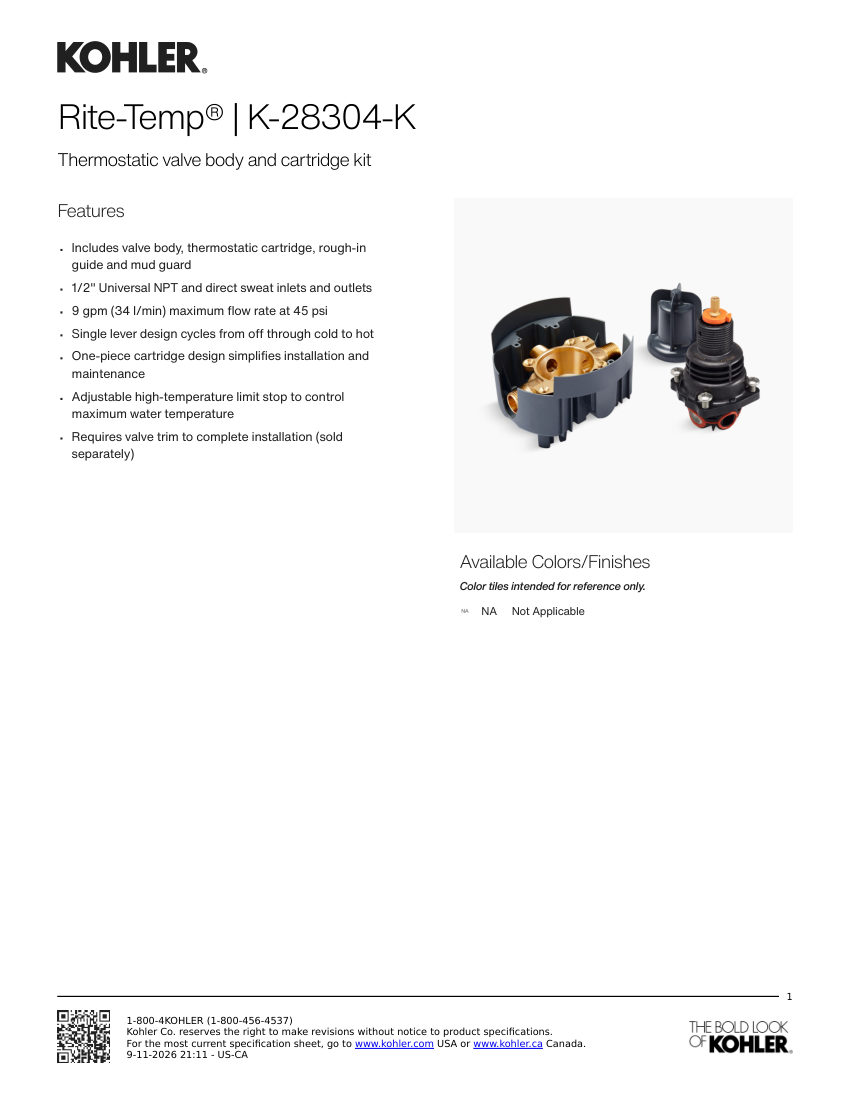

Kohler 28304-K cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
28304-K
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number28304-K
DescriptionKohler Thermostatic valve body and cartridge kit (Rite-Temp). Model K-28304-K. Includes valve body, thermostatic cartridge, rough-in guide, and mud guard; Single lever design cycles from off through cold to hot; One-piece cartridge design simplifies installation and maintenance; Adjustable high-temperature limit stop to control maximum water temperature. material: Forged dezincification-resistant brass
Connection size1/2" Universal NPT and direct sweat
End connectionNPT and sweat
Pressure Rating150 psi max (air or water) without cartridge
Flow Rate9 gpm (34 l/min) maximum at 45 psi; mo
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
