DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Kohler28304-KS

Kohler Thermostatic valve body and cartridge kit (Rite-Temp). Model K-28304-KS. Includes valve body, thermostatic cartridge, rough-in guide, and mud guard; Service stops include integral check valves; Single lever design cycles from off through cold to hot; Adjustable high-temperature limit stop. material: Forged dezincification-resistant brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF28304-KS.pdfData sheet

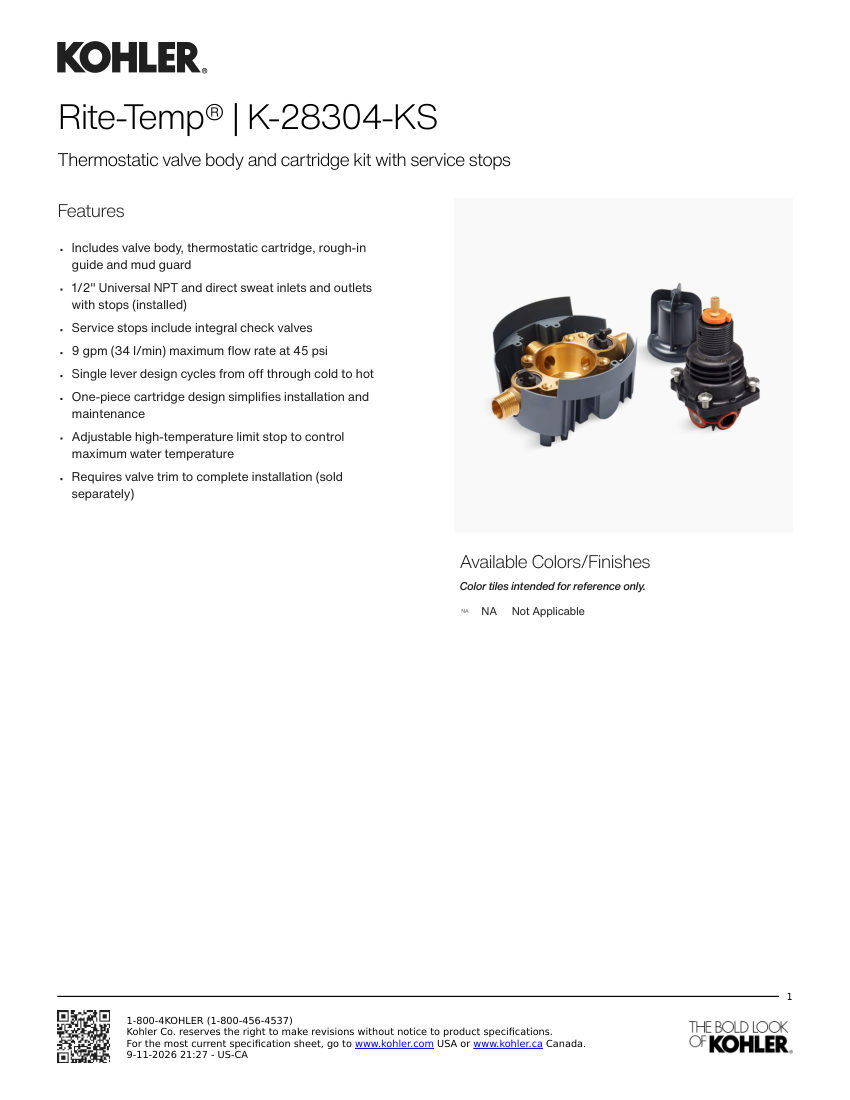

Kohler 28304-KS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
28304-KS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number28304-KS
DescriptionKohler Thermostatic valve body and cartridge kit (Rite-Temp). Model K-28304-KS. Includes valve body, thermostatic cartridge, rough-in guide, and mud guard; Service stops include integral check valves; Single lever design cycles from off through cold to hot; Adjustable high-temperature limit stop. material: Forged dezincification-resistant brass
Connection size1/2" Universal NPT
End connectionDirect sweat inlets and outlets with stops
Pressure Rating150 psi max (air or water) without cartridge
Flow Rate9 gpm (34 l/min) maximum at 45 psi
MountingStandard, back-to-back, and thin wall i
