DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Kohler3051-1

Kohler Vanity Top Bathroom Sink (Iron Impressions). Model K-3051-1. Single faucet hole with 1-3/8" (35 mm) diameter; Elongated oval basin with 32" (813 mm) x 13-7/8" (352 mm) bowl area; No overflow hole; Combines with standard 36" (915 mm) vanities. material: Kohler enameled cast iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3051-1.pdfData sheet

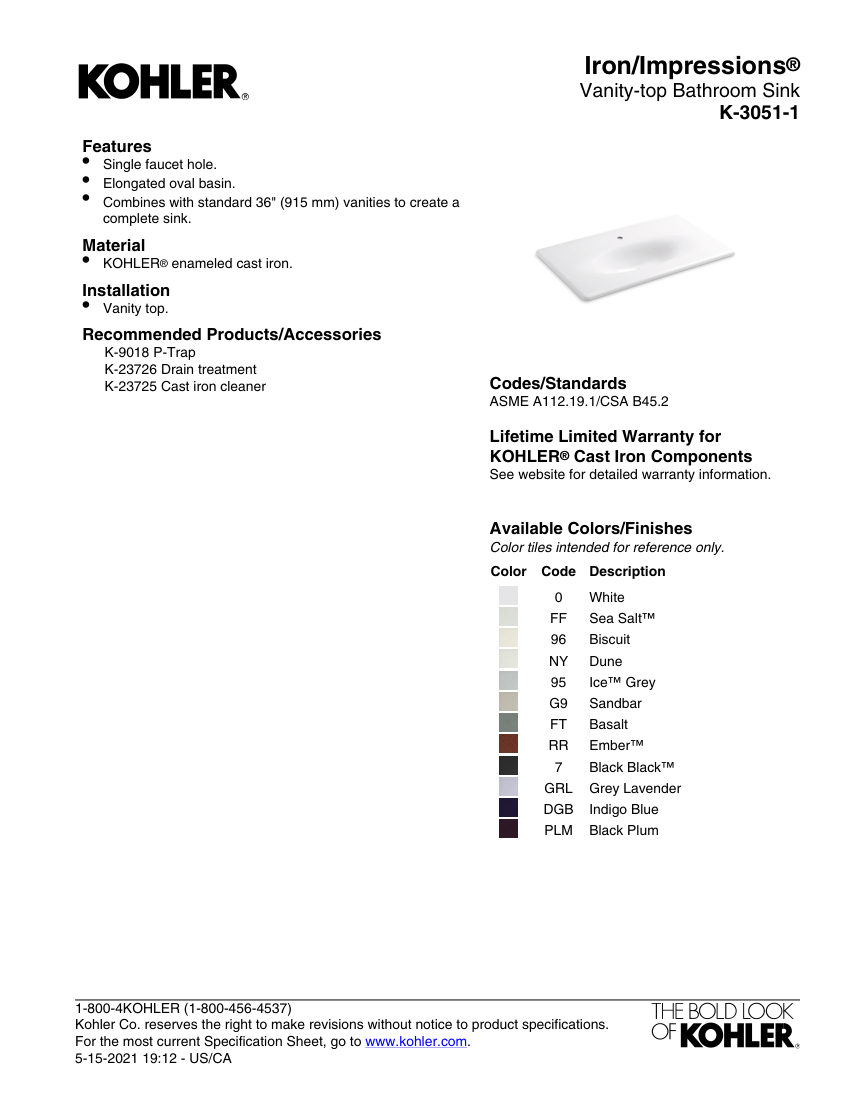

Kohler 3051-1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
3051-1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3051-1
DescriptionKohler Vanity Top Bathroom Sink (Iron Impressions). Model K-3051-1. Single faucet hole with 1-3/8" (35 mm) diameter; Elongated oval basin with 32" (813 mm) x 13-7/8" (352 mm) bowl area; No overflow hole; Combines with standard 36" (915 mm) vanities. material: Kohler enameled cast iron
Connection size1-3/4" (44 mm) drain, 3/8" (9.5 mm) water supply
FinishWhite, Sea Salt, Biscuit, Dune, Ice Grey, Sandbar, Basalt, Ember, Black, Grey Lavender, Indigo Blue, Black Plum
MountingVanity top
Dimensions37-5/8" (956 mm) L x 22-1/4" (565 mm) W x 3-15/16" (100 mm) H
ComplianceASME A112.19.1/CS
