DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Kohler31796

Kohler Bath drain kit (PerfectFill). Model K-31796. Includes above-the-floor drain assembly, PerfectFill controller, drain fittings, remote on/off button, and mounting hardware; Features AutoFill, AutoDrain, and Warm Up/Cool Down functions; Compatible with KOHLER Konnect app, Amazon Alexa, and Google Home; Requires bath spout and drain trim kit (sold separately). material: Schedule 40 PVC with metal overflow cover; Reinforced engineering-grade thermoplastic casing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF31796.pdfData sheet

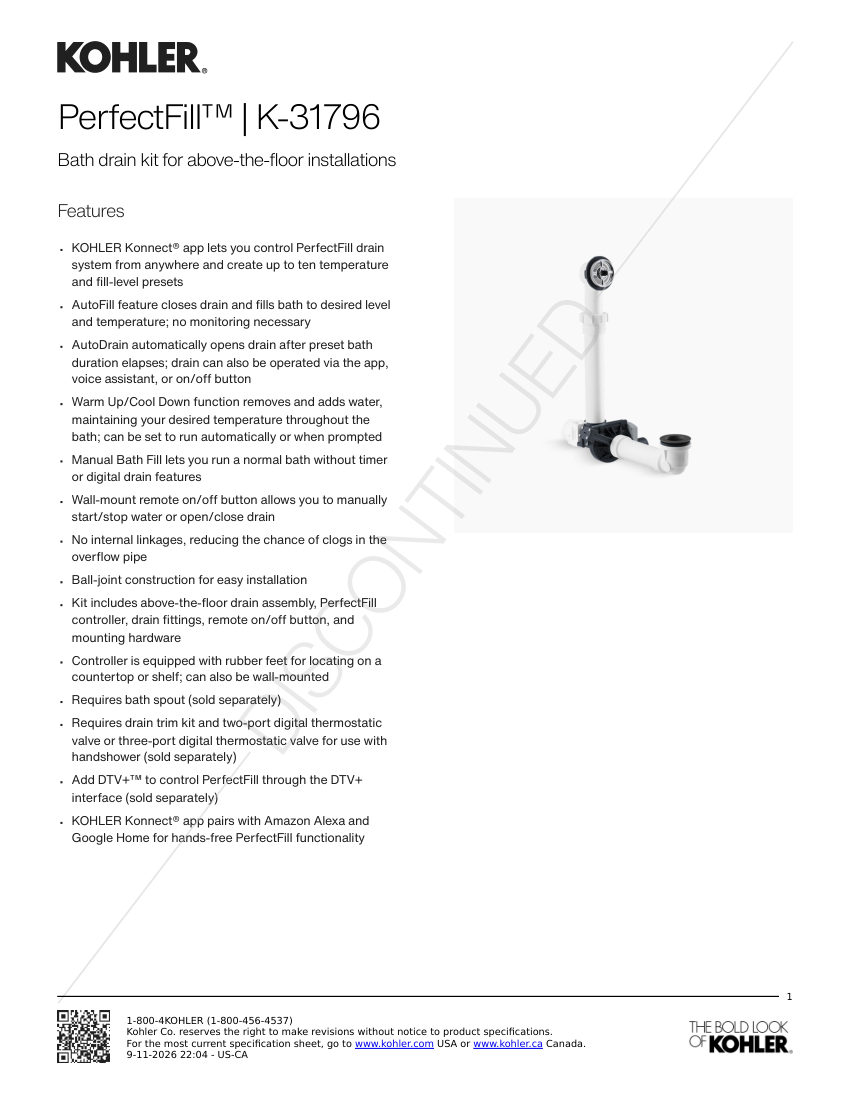

Kohler 31796 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
31796
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number31796
DescriptionKohler Bath drain kit (PerfectFill). Model K-31796. Includes above-the-floor drain assembly, PerfectFill controller, drain fittings, remote on/off button, and mounting hardware; Features AutoFill, AutoDrain, and Warm Up/Cool Down functions; Compatible with KOHLER Konnect app, Amazon Alexa, and Google Home; Requires bath spout and drain trim kit (sold separately). material: Schedule 40 PVC with metal overflow cover; Reinforced engineering-grade thermoplastic casing
MountingAbove-the-floor
DimensionsController: 16-11/16" (424 mm) x 8-7/16" (214 mm) x 3-13/16" (97 mm)
Drain assembly7-3/4
