KohlerK-31798 — Perfectfill Bath Drain Kit31798

Kohler Bath drain kit (PerfectFill). Model K-31798. Includes through-the-floor drain assembly, controller, fittings, and remote button; Features AutoFill, AutoDrain, and Warm Up/Cool Down functions; Compatible with KOHLER Konnect app, Amazon Alexa, and Google Home; Requires separate bath spout and digital thermostatic valve. material: Schedule 40 PVC with metal overflow cover; Reinforced engineering-grade thermoplastic casing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF31798.pdfData sheet

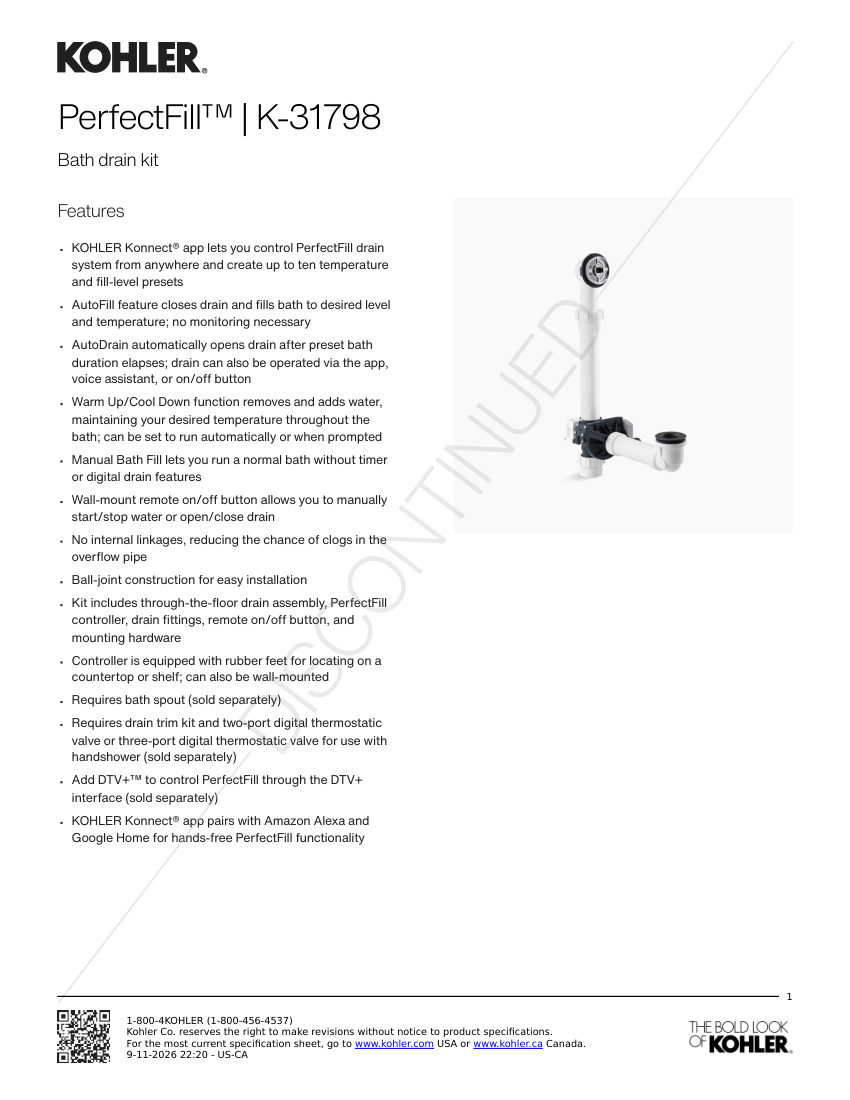

Kohler 31798 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
31798
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number31798
DescriptionKohler Bath drain kit (PerfectFill). Model K-31798. Includes through-the-floor drain assembly, controller, fittings, and remote button; Features AutoFill, AutoDrain, and Warm Up/Cool Down functions; Compatible with KOHLER Konnect app, Amazon Alexa, and Google Home; Requires separate bath spout and digital thermostatic valve. material: Schedule 40 PVC with metal overflow cover; Reinforced engineering-grade thermoplastic casing
Connection size4" (102 mm)
End connectionThrough-the-floor
MountingThrough-the-floor; Controller wall-mount or countertop
DimensionsController: 16-11/16" (424 m
