DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Kohler45209 — Hydrorail R Arch Bath And Shower Column45209

Kohler Bath and Shower Column (HydroRail). Model K-45209. Arched shower arm allows installation with low ceiling heights; Slidebar bracket allows adjustment of handshower height and angle; Diverter at base toggles between handshower and showerhead; Rainhead, handshower, and hose sold separately. material: Premium metal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF45209.pdfData sheet

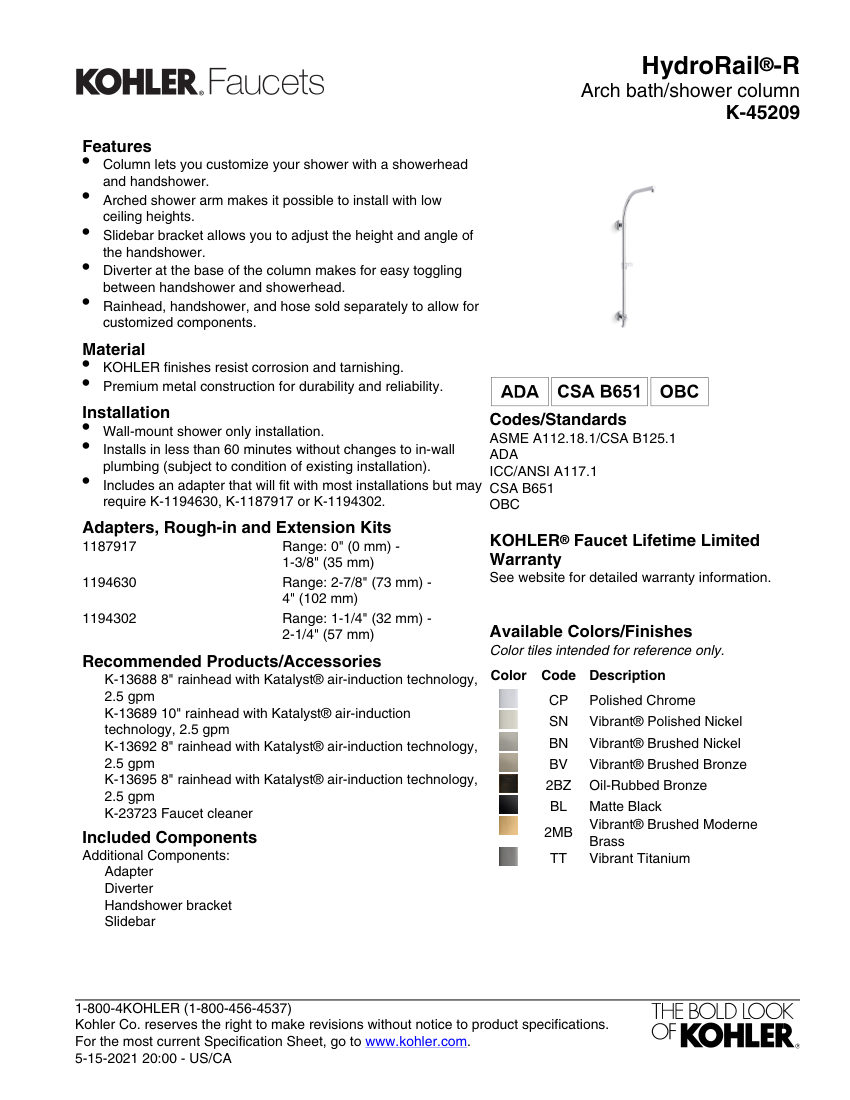

Kohler 45209 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
45209
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number45209
DescriptionKohler Bath and Shower Column (HydroRail). Model K-45209. Arched shower arm allows installation with low ceiling heights; Slidebar bracket allows adjustment of handshower height and angle; Diverter at base toggles between handshower and showerhead; Rainhead, handshower, and hose sold separately. material: Premium metal
Connection size1/2" NPT
End connectionWall-mount
FinishPolished Chrome, Vibrant Polished Nickel, Vibrant Brushed Nickel, Vibrant Brushed Bronze, Oil-Rubbed Bronze, Matte Black, Vibrant Brushed Moderne Brass, Vibrant Titanium
MountingWall-mount
DimensionsHeight 27" (
