Kohler5707

Kohler Top-mount/undermount single-bowl kitchen sink (Kitchen Sink). Model K-5707. Single bowl with 9" (229 mm) depth; Minimum 33" (838 mm) base cabinet width for top-mount; Minimum 36" (914 mm) base cabinet width for undermount

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF5707.pdfData sheet

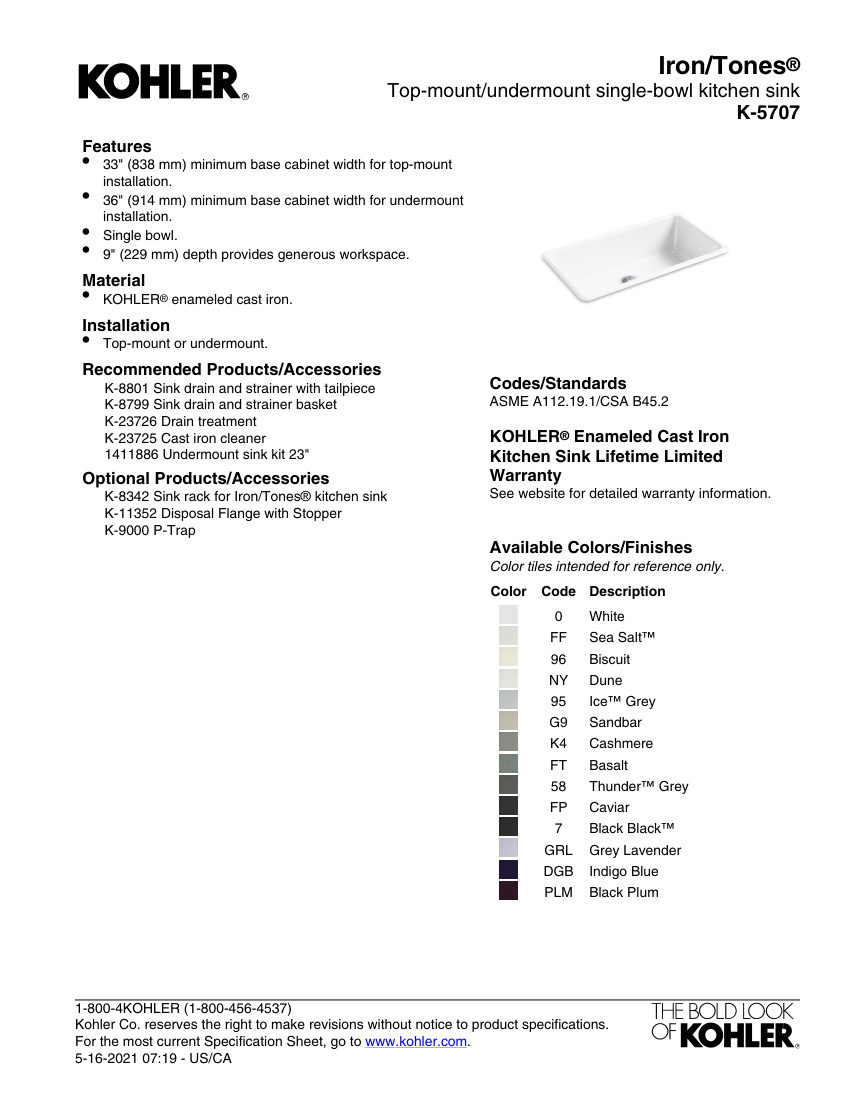

Kohler 5707 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
5707
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number5707
DescriptionKohler Top-mount/undermount single-bowl kitchen sink (Kitchen Sink). Model K-5707. Single bowl with 9" (229 mm) depth; Minimum 33" (838 mm) base cabinet width for top-mount; Minimum 36" (914 mm) base cabinet width for undermount
Bowl area30-5/16" L x 16-1/16" W. material: KOHLER® enameled cast iron
Connection size3-7/8" (98 mm) drain hole
FinishWhite, Sea Salt, Biscuit, Dune, Ice Grey, Sandbar, Cashmere, Basalt, Thunder Grey, Caviar, Black, Grey Lavender, Indigo Blue, Black Plum
MountingTop-mount or undermount
Dimensions33" x 18-3/4" x 9-5/8" (838 x 476 x 244 mm)
ComplianceASM
