DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Kohler6589-U — Northland Under Mount Bar Sink6589-U

Kohler Undermount bar sink (Northland). Model K-6589-U. Single bowl configuration; Requires 1" (25 mm) minimum countertop thickness; Includes undermount installation kit and clamp accessory pack; ADA compliant when installed to specific requirements. material: KOHLER enameled cast iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6589-U.pdfData sheet

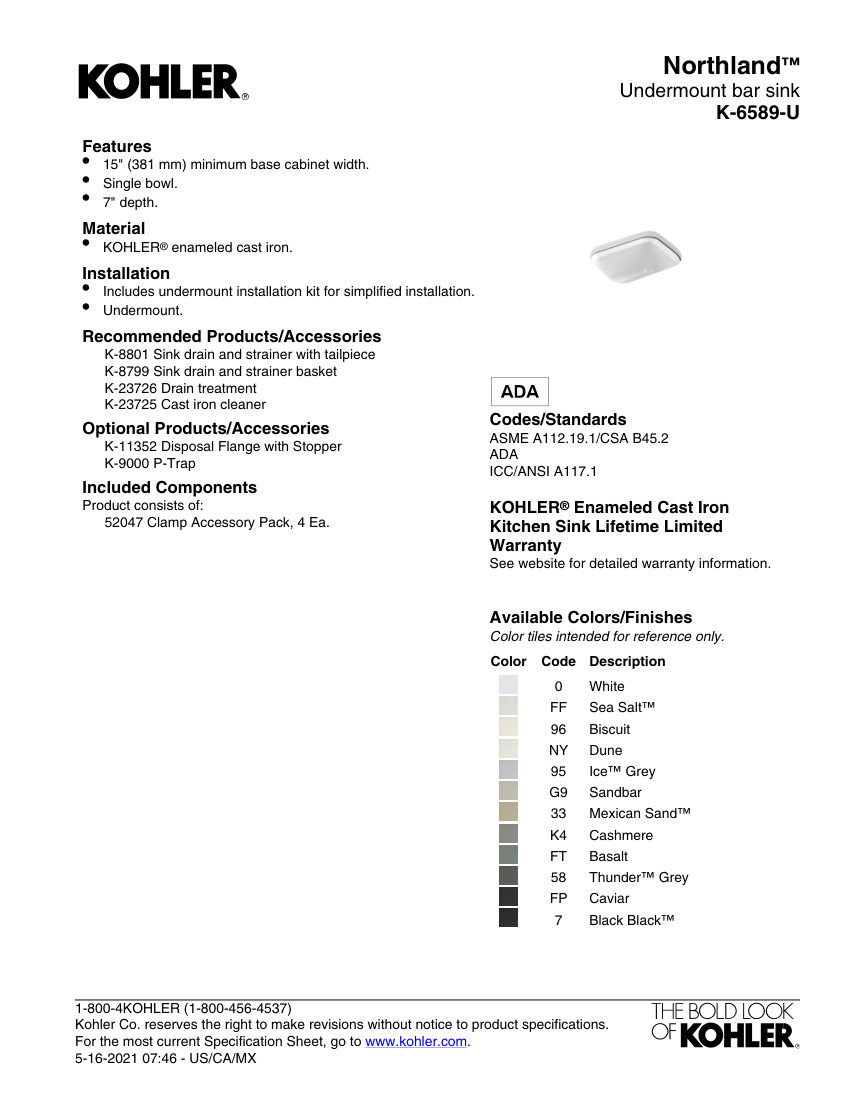

Kohler 6589-U cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
6589-U
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6589-U
DescriptionKohler Undermount bar sink (Northland). Model K-6589-U. Single bowl configuration; Requires 1" (25 mm) minimum countertop thickness; Includes undermount installation kit and clamp accessory pack; ADA compliant when installed to specific requirements. material: KOHLER enameled cast iron
Connection size3-7/8" (98 mm) drain hole
FinishWhite, Sea Salt, Biscuit, Dune, Ice Grey, Sandbar, Mexican Sand, Cashmere, Basalt, Thunder Grey, Caviar, Black
MountingUndermount
Dimensions15" (381 mm) min base cabinet width; 12-3/8" (314 mm) x 7-1/2" (191 mm) bowl area; 7" (178 mm) depth
ComplianceA
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
