Kohler702419-L

Kohler Frameless Sliding Bath Door (Bath Door). Model K-702419-L. 5/16" (8 mm) thick Crystal Clear tempered glass; Frameless design with CleanCoat+ hydrophobic coating; Fits opening widths 56-5/8" to 59-5/8" (1438-1514 mm); Height is 61-9/16" (1564 mm) with 55-9/16" minimum head clearance. material: 5/16" (8 mm) thick Crystal Clear tempered glass, anodized aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF702419-L.pdfData sheet

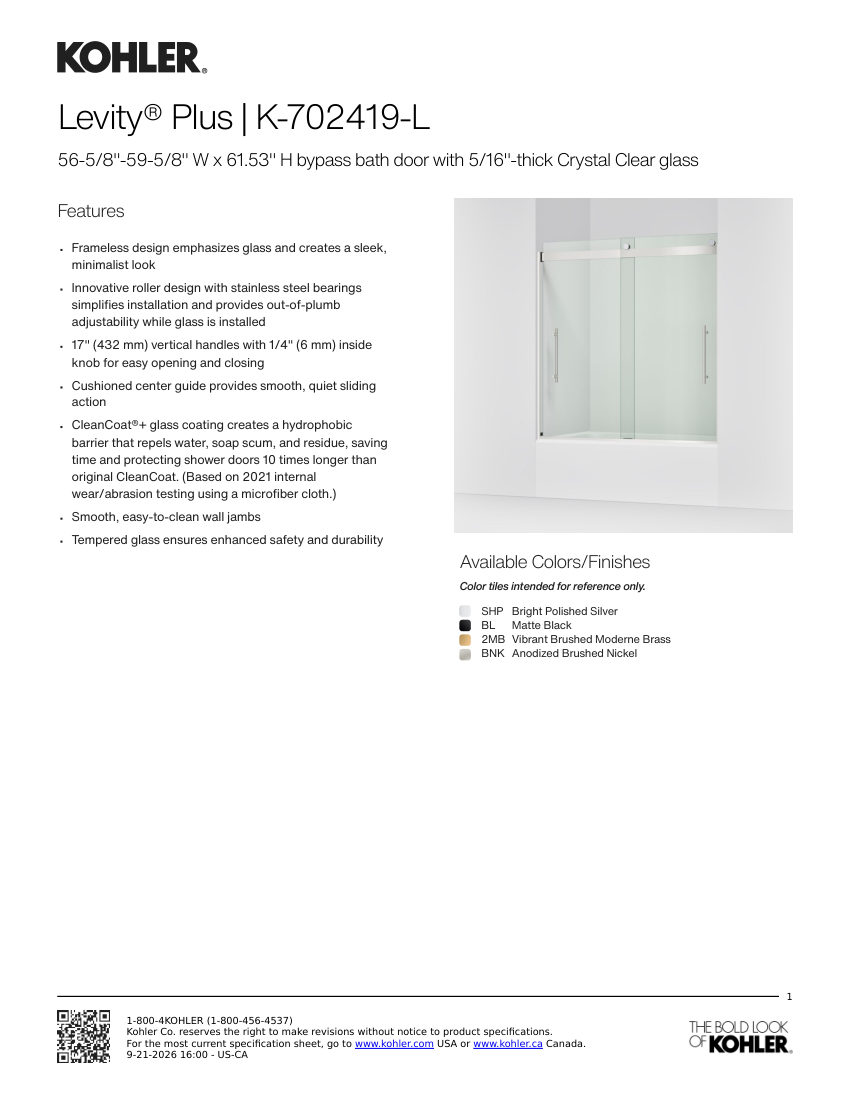

Kohler 702419-L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
702419-L
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number702419-L
DescriptionKohler Frameless Sliding Bath Door (Bath Door). Model K-702419-L. 5/16" (8 mm) thick Crystal Clear tempered glass; Frameless design with CleanCoat+ hydrophobic coating; Fits opening widths 56-5/8" to 59-5/8" (1438-1514 mm); Height is 61-9/16" (1564 mm) with 55-9/16" minimum head clearance. material: 5/16" (8 mm) thick Crystal Clear tempered glass, anodized aluminum
FinishSHP Bright Polished Silver, BL Matte Black, 2MB Vibrant Brushed Moderne Brass, BNK Anodized Brushed Nickel
MountingFrameless, bypass sliding
Dimensions56-5/8"-59-5/8" W x 61-9/16" H
ComplianceANSI Z97.1, CAN/CGSB-1
