Kohler702472-8G81

Kohler sliding shower door (Premise). Model K-702472-8G81. Fits opening widths 44-5/8" to 47-5/8" (1133-1210 mm); Height is 76-1/8" (1934 mm) with 74-7/16" (1891 mm) minimum head clearance; Features Controlled Close soft-close with double-dampening technology; Includes CleanCoat+ hydrophobic glass coating. material: 5/16" (8 mm) thick Crystal Clear tempered glass, anodized aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF702472-8G81.pdfData sheet

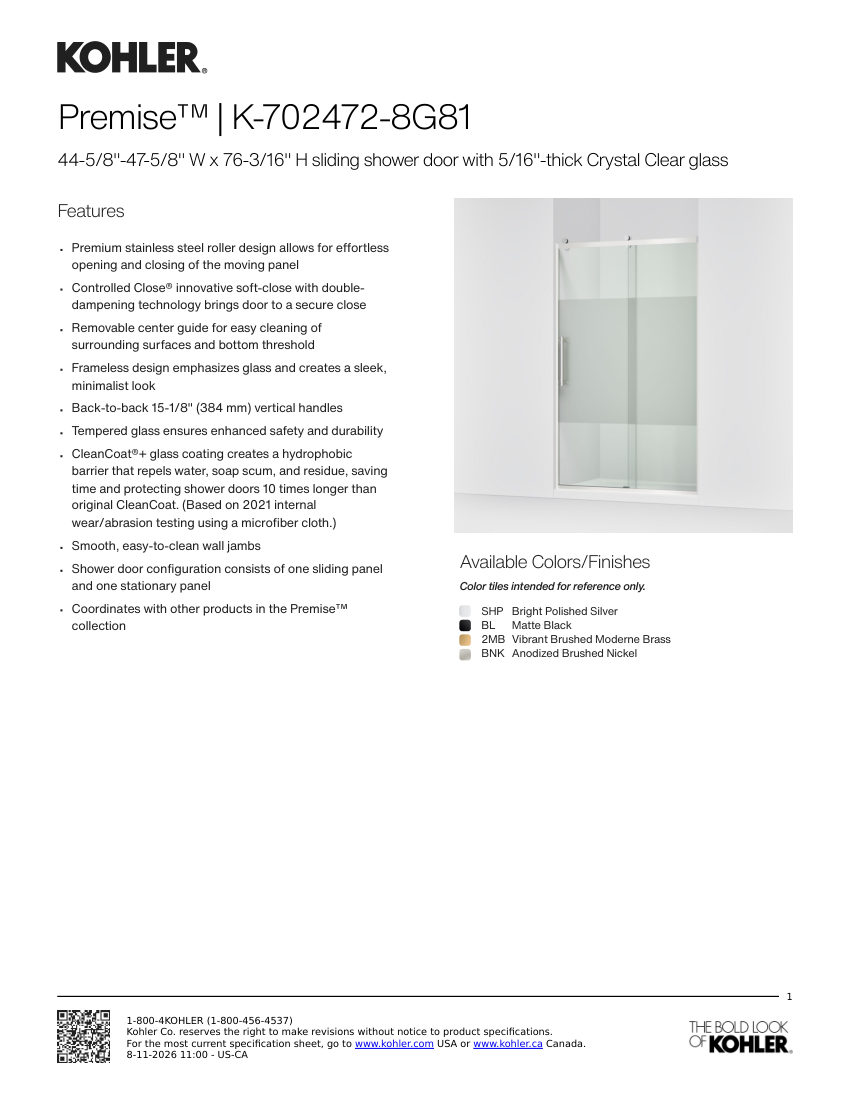

Kohler 702472-8G81 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
702472-8G81
Product type
Plumbing
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog number702472-8G81
DescriptionKohler sliding shower door (Premise). Model K-702472-8G81. Fits opening widths 44-5/8" to 47-5/8" (1133-1210 mm); Height is 76-1/8" (1934 mm) with 74-7/16" (1891 mm) minimum head clearance; Features Controlled Close soft-close with double-dampening technology; Includes CleanCoat+ hydrophobic glass coating. material: 5/16" (8 mm) thick Crystal Clear tempered glass, anodized aluminum
FinishBright Polished Silver, Matte Black, Vibrant Brushed Moderne Brass, Anodized Brushed Nickel
MountingFrameless, sliding panel and stationary panel
Dimensions44-5/8"-47-5/8" W x 76-3/16" H; compliance:
