DIV 08 · OPENINGSPLUMBINGCUT SHEET INDEXED

Kohler702473-8G81

Kohler sliding bath door (Premise). Model K-702473-8G81. Fits opening widths 56-5/8" to 59-5/8" (1438-1514 mm); Height is 61-11/16" (1567 mm) with 59-15/16" (1522 mm) minimum head clearance; Includes Controlled Close soft-close technology with double-dampening; Features CleanCoat+ hydrophobic glass coating. material: 5/16" (8 mm) thick Crystal Clear tempered glass, anodized aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF702473-8G81.pdfData sheet

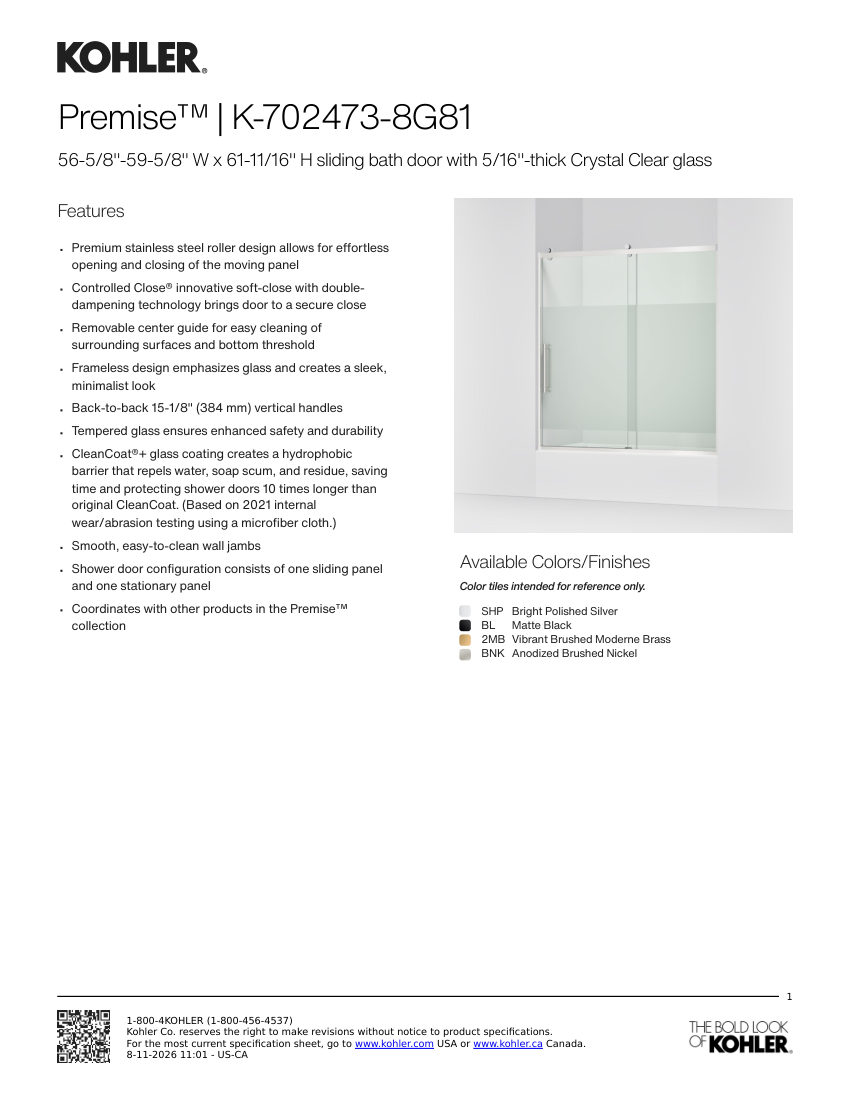

Kohler 702473-8G81 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
702473-8G81
Product type
Plumbing
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog number702473-8G81
DescriptionKohler sliding bath door (Premise). Model K-702473-8G81. Fits opening widths 56-5/8" to 59-5/8" (1438-1514 mm); Height is 61-11/16" (1567 mm) with 59-15/16" (1522 mm) minimum head clearance; Includes Controlled Close soft-close technology with double-dampening; Features CleanCoat+ hydrophobic glass coating. material: 5/16" (8 mm) thick Crystal Clear tempered glass, anodized aluminum
FinishSHP Bright Polished Silver, BL Matte Black, 2MB Vibrant Brushed Moderne Brass, BNK Anodized Brushed Nickel
MountingSliding, frameless
Dimensions56-5/8"-59-5/8" W x 61-11/16" H
ComplianceANSI Z97.1
