Kohler706002-L

Kohler Frameless Sliding Bath Door (Levity). Model K-706002-L. Frameless design with 1/4" (6 mm) Crystal Clear tempered glass; Sliding/Bypass opening style

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF706002-L.pdfData sheet

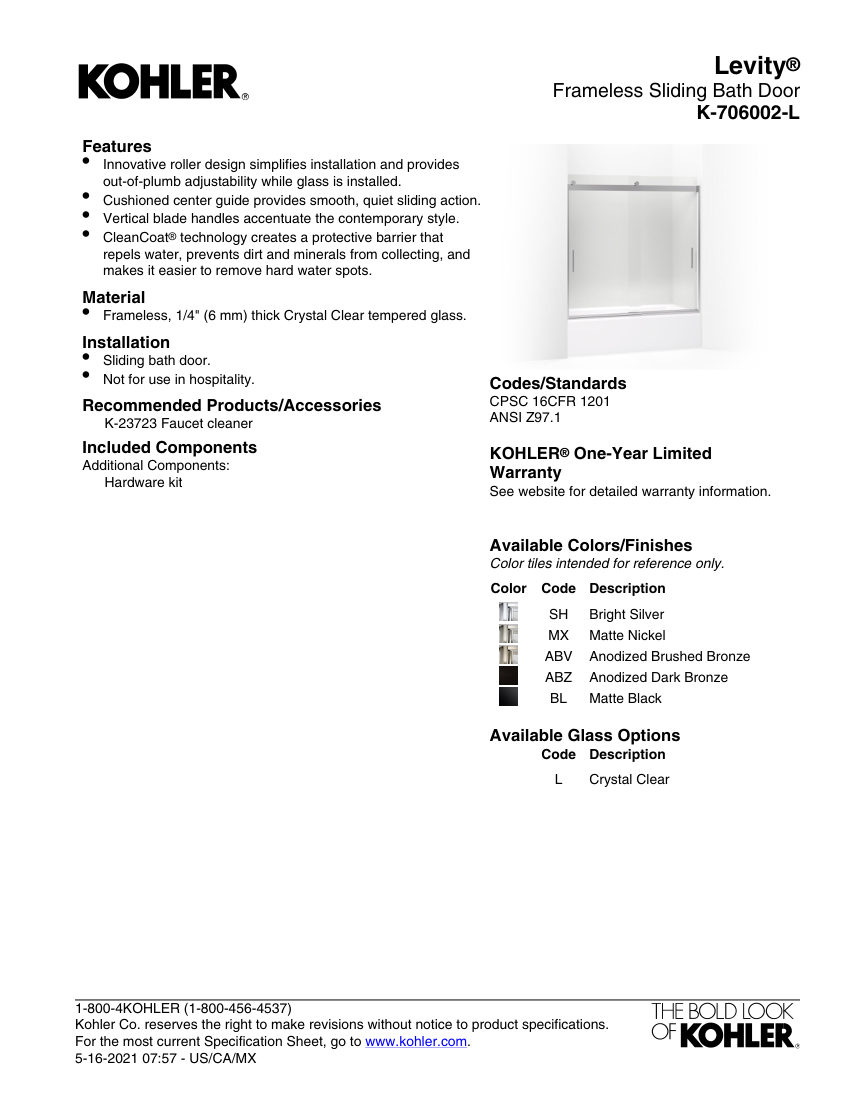

Kohler 706002-L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
706002-L
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number706002-L
DescriptionKohler Frameless Sliding Bath Door (Levity). Model K-706002-L. Frameless design with 1/4" (6 mm) Crystal Clear tempered glass; Sliding/Bypass opening style
Opening width range56-5/8" (1438 mm) min to 59-5/8" (1514 mm) max; Walk-through width: 24-9/16" (624 mm) min to 27-9/16" (700 mm) max. material: 1/4" (6 mm) thick Crystal Clear tempered glass
FinishBright Silver, Matte Nickel, Anodized Brushed Bronze, Anodized Dark Bronze, Matte Black
MountingSliding/Bypass
Dimensions59-5/16" (1507 mm) H x 56-5/8" (1438 mm) Min to 59-5/8" (1514 mm) Max W
ComplianceCPSC 16CFR 1201, ANSI Z97.1.
