DIV 08 · OPENINGSPLUMBINGCUT SHEET INDEXED

Kohler707621-8L

Kohler Sliding Shower Door (Shower Door). Model K-707621-8L. Fits opening widths 55-3/4" to 59-3/4" (1416-1518 mm); Requires 1-3/4" (44 mm) minimum threshold depth; Requires 5-1/2" (140 mm) minimum flat wall on fixed-panel side

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF707621-8L.pdfData sheet

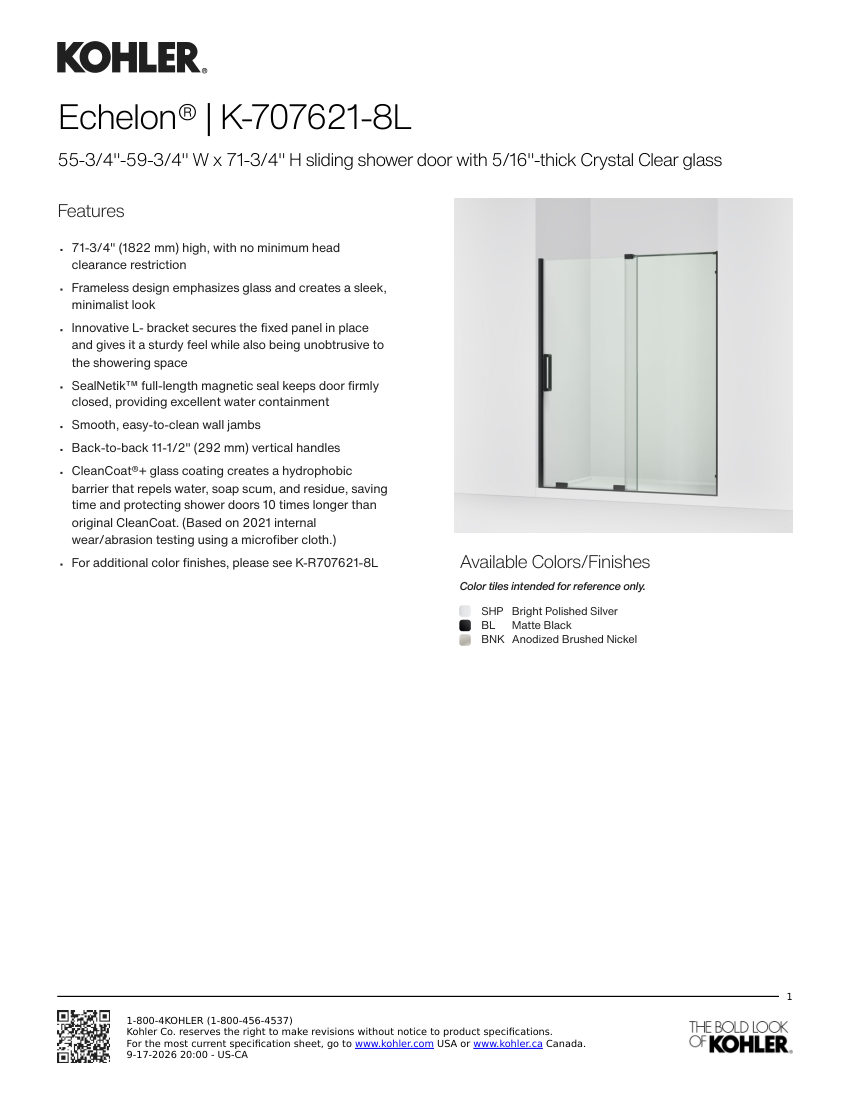

Kohler 707621-8L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
707621-8L
Product type
Plumbing
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog number707621-8L
DescriptionKohler Sliding Shower Door (Shower Door). Model K-707621-8L. Fits opening widths 55-3/4" to 59-3/4" (1416-1518 mm); Requires 1-3/4" (44 mm) minimum threshold depth; Requires 5-1/2" (140 mm) minimum flat wall on fixed-panel side
Weight145.401 lbs (66 kg). material: 5/16" (8 mm) thick Crystal Clear tempered glass, Anodized aluminum
FinishSHP Bright Polished Silver, BL Matte Black, BNK Anodized Brushed Nickel
MountingFrameless, L-bracket, 3/8" (10 mm) out-of-plumb adjustability
Dimensions55-3/4"-59-3/4" W x 71-3/4" H (1416-1518 mm W x 1822 mm H)
ComplianceANSI Z97.1, CAN/CGSB-12.1,
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
