Kohler76333

Kohler Wall-mount shower arm with 2-way diverter (Shower Arm). Model K-76333. Includes 2-way diverter to switch between rainhead/showerhead and handshower; Connection size is 1/2"-14 NPT; Overall length is 18-3/16" (462 mm); Complies with ASME A112.18.1/CSA B125.1. material: Premium metal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF76333.pdfData sheet

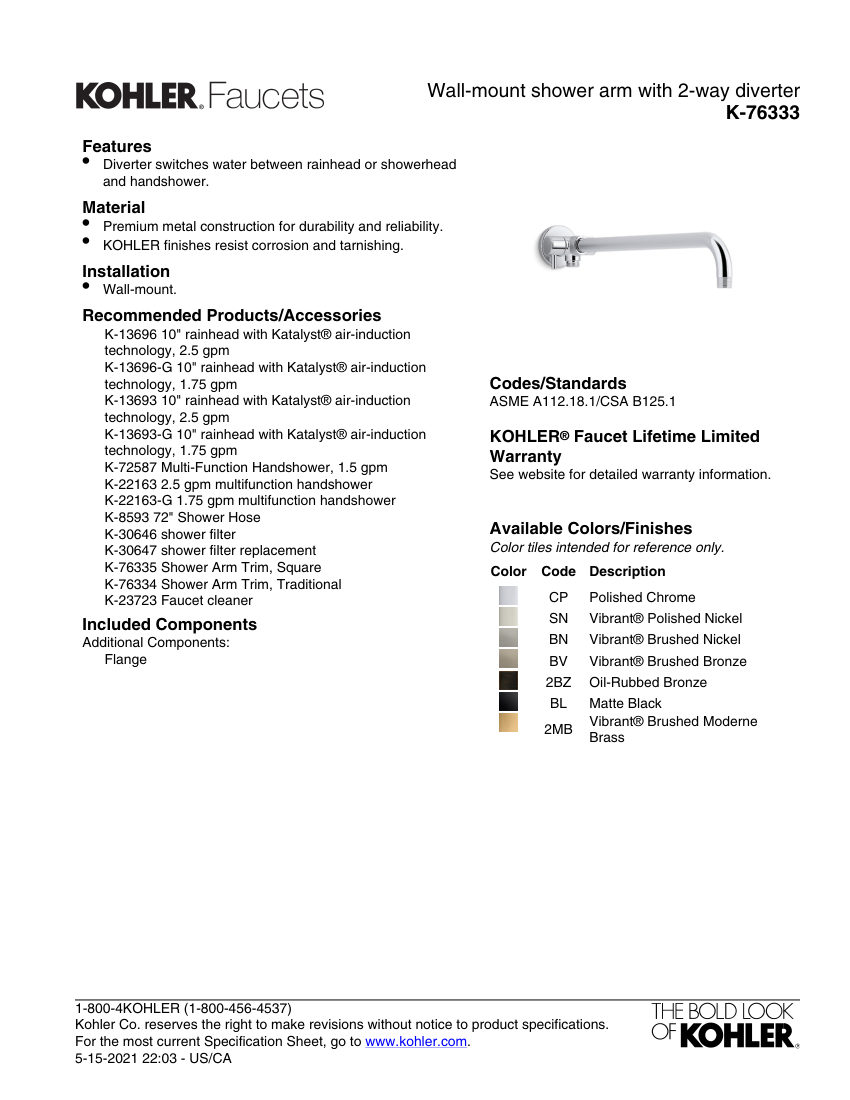

Kohler 76333 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
76333
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number76333
DescriptionKohler Wall-mount shower arm with 2-way diverter (Shower Arm). Model K-76333. Includes 2-way diverter to switch between rainhead/showerhead and handshower; Connection size is 1/2"-14 NPT; Overall length is 18-3/16" (462 mm); Complies with ASME A112.18.1/CSA B125.1. material: Premium metal
Connection size1/2"-14 NPT
End connection1/2"-14 NPT
FinishPolished Chrome, Vibrant Polished Nickel, Vibrant Brushed Nickel, Vibrant Brushed Bronze, Oil-Rubbed Bronze, Matte Black, Vibrant Brushed Moderne Brass
MountingWall-mount
Dimensions18-3/16" (462 mm) length, 3-1/16" (78 mm) height, 2" (51
