Kohler77990-9

Kohler deck-mount bath faucet handles with valve (Components). Model K-77990-9. Includes two Industrial handles for volume and temperature control; Features KOHLER ceramic disc valves; Valves included in package; Requires separate deck-mount bath spout (K-77985, K-77986, or K-77987). material: Premium metal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF77990-9.pdfData sheet

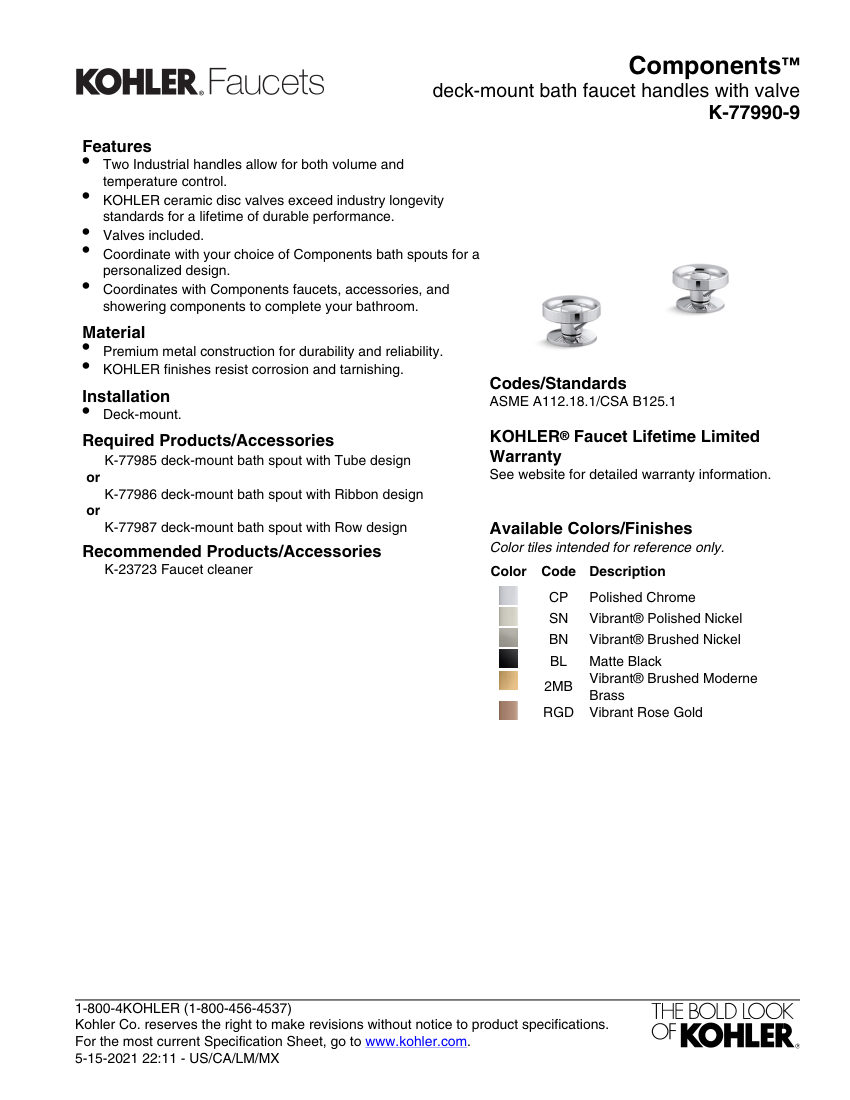

Kohler 77990-9 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
77990-9
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number77990-9
DescriptionKohler deck-mount bath faucet handles with valve (Components). Model K-77990-9. Includes two Industrial handles for volume and temperature control; Features KOHLER ceramic disc valves; Valves included in package; Requires separate deck-mount bath spout (K-77985, K-77986, or K-77987). material: Premium metal
Connection size5/8" ID
FinishPolished Chrome, Vibrant Polished Nickel, Vibrant Brushed Nickel, Matte Black, Vibrant Brushed Moderne Brass, Vibrant Rose Gold
MountingDeck-mount
DimensionsØ 2-3/4" (70 mm), Ø 2-3/8" (60 mm), 1-3/4" (44 mm), 3" Max (76 mm)
ComplianceASME A112.18.1
