DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Kohler8300-K — Rite Temp Valve Body Rough In With Universal Inlets8300-K

Kohler Valve Body Rough-In (Rite-Temp). Model K-8300-K. Includes valve body, rough-in guide, and test cap; Requires separate valve cartridge and trim for installation; Symmetrical valve inlets simplify installation; Compatible with K-8305 or K-P8305 Pressure Balance Cartridge. material: Forged dezincification-resistant brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF8300-K.pdfData sheet

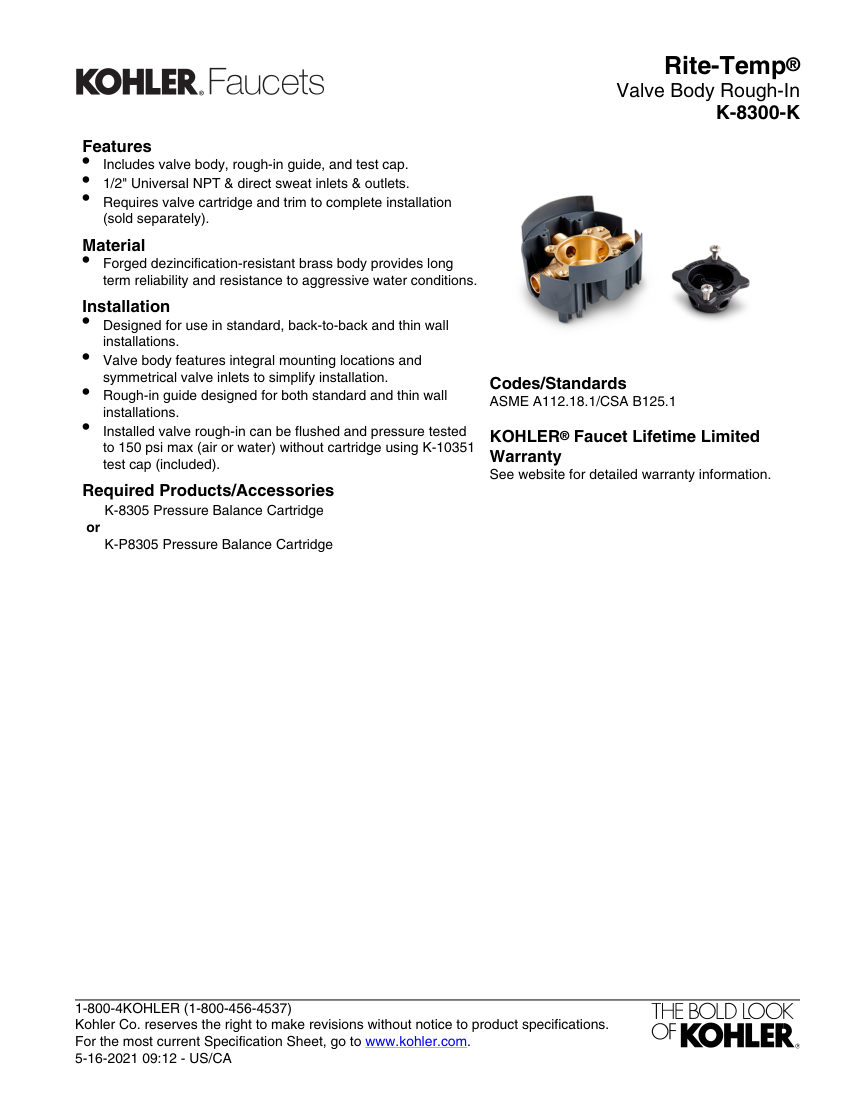

Kohler 8300-K cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
8300-K
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number8300-K
DescriptionKohler Valve Body Rough-In (Rite-Temp). Model K-8300-K. Includes valve body, rough-in guide, and test cap; Requires separate valve cartridge and trim for installation; Symmetrical valve inlets simplify installation; Compatible with K-8305 or K-P8305 Pressure Balance Cartridge. material: Forged dezincification-resistant brass
Connection size1/2"-14 NPT and 5/8" ID for 1/2" Nominal Copper Tubing
End connectionUniversal NPT & direct sweat inlets & outlets
Pressure Rating150 psi max (air or water) without cartridge
MountingStandard, back-to-back and thin wall installations
DimensionsCu
