DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Kohler8304-K

Kohler Pressure Balancing Valve Body and Cartridge Kit (Shower Valve). Model K-8304-K. Includes valve body, pressure balance cartridge, rough-in guide, and mudguard; Single lever design cycles from off through cold to hot; Pressure-balancing diaphragm maintains outlet temperature within +/-3°F; Adjustable high-temperature limit stop for anti-scald protection. material: Forged dezincification-resistant brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF8304-K.pdfData sheet

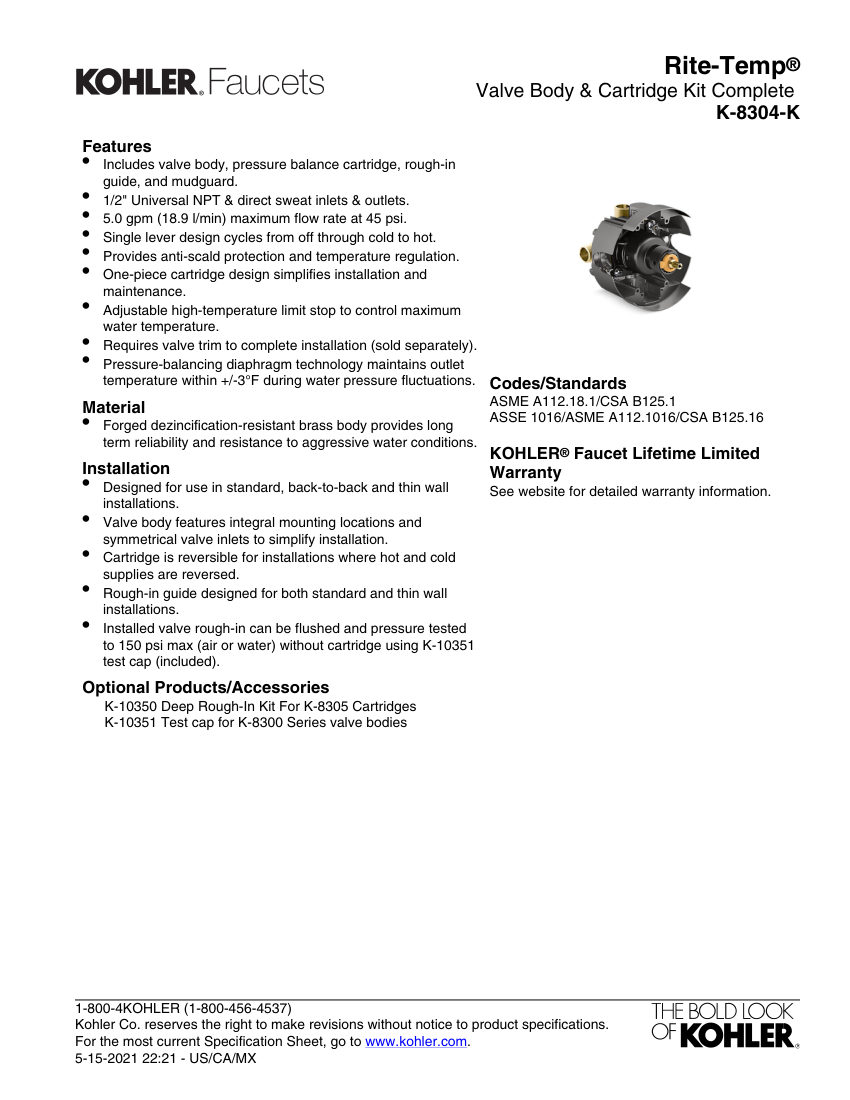

Kohler 8304-K cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
8304-K
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number8304-K
DescriptionKohler Pressure Balancing Valve Body and Cartridge Kit (Shower Valve). Model K-8304-K. Includes valve body, pressure balance cartridge, rough-in guide, and mudguard; Single lever design cycles from off through cold to hot; Pressure-balancing diaphragm maintains outlet temperature within +/-3°F; Adjustable high-temperature limit stop for anti-scald protection. material: Forged dezincification-resistant brass
Connection size1/2" Universal NPT & direct sweat
End connection1/2"-14 NPT and 5/8" ID for 1/2" Nominal Copper Tubing
Pressure RatingMax Static: 125 psi (8.6 bar)
Min Operating20 p
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
