DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Kohler8304-US

Kohler Pressure Balancing Valve Body Cartridge Kit (Shower Valve). Model K-8304-US. Includes valve body, pressure balance cartridge, rough-in guide, and mudguard; Service stops include integral check valves; Anti-scald protection with adjustable high-temperature limit stop; One-piece reversible cartridge design. material: Forged dezincification-resistant brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF8304-US.pdfData sheet

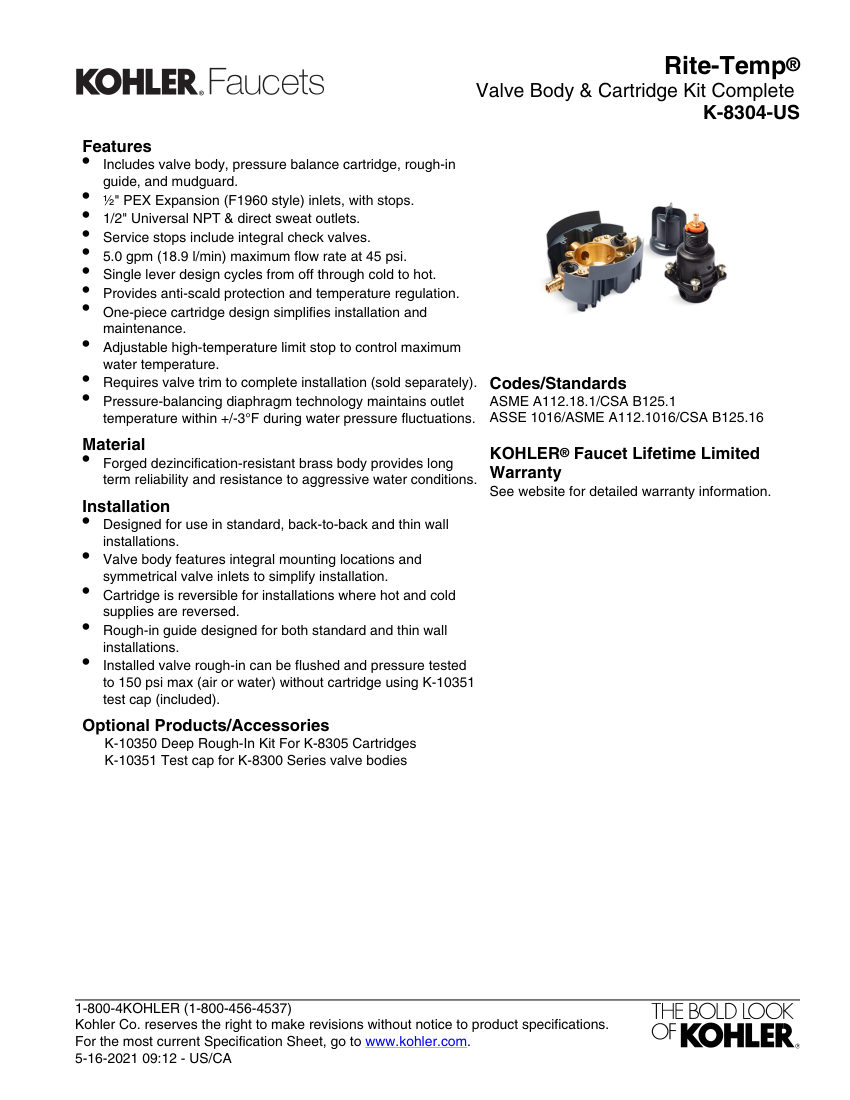

Kohler 8304-US cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
8304-US
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number8304-US
DescriptionKohler Pressure Balancing Valve Body Cartridge Kit (Shower Valve). Model K-8304-US. Includes valve body, pressure balance cartridge, rough-in guide, and mudguard; Service stops include integral check valves; Anti-scald protection with adjustable high-temperature limit stop; One-piece reversible cartridge design. material: Forged dezincification-resistant brass
Connection size1/2" PEX Expansion inlets, 1/2" NPT & 5/8" ID sweat outlets
End connectionPEX Expansion (F1960 style) inlets, Universal NPT & direct sweat outlets
Pressure RatingMax Static 125 psi, Min Operating 20 psi, Test 150 psi
