Kohler9033 — Bottle Trap 1 1 4 X 1 1 49033

Kohler Bottle Trap (Plumbing Fittings). Model K-9033. 1-1/4" (32 mm) diameter slip-fit inlet; Includes 12" (305 mm) extension tube; Removable trap eye for easy cleaning; Solid-brass construction. material: Solid brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9033.pdfData sheet

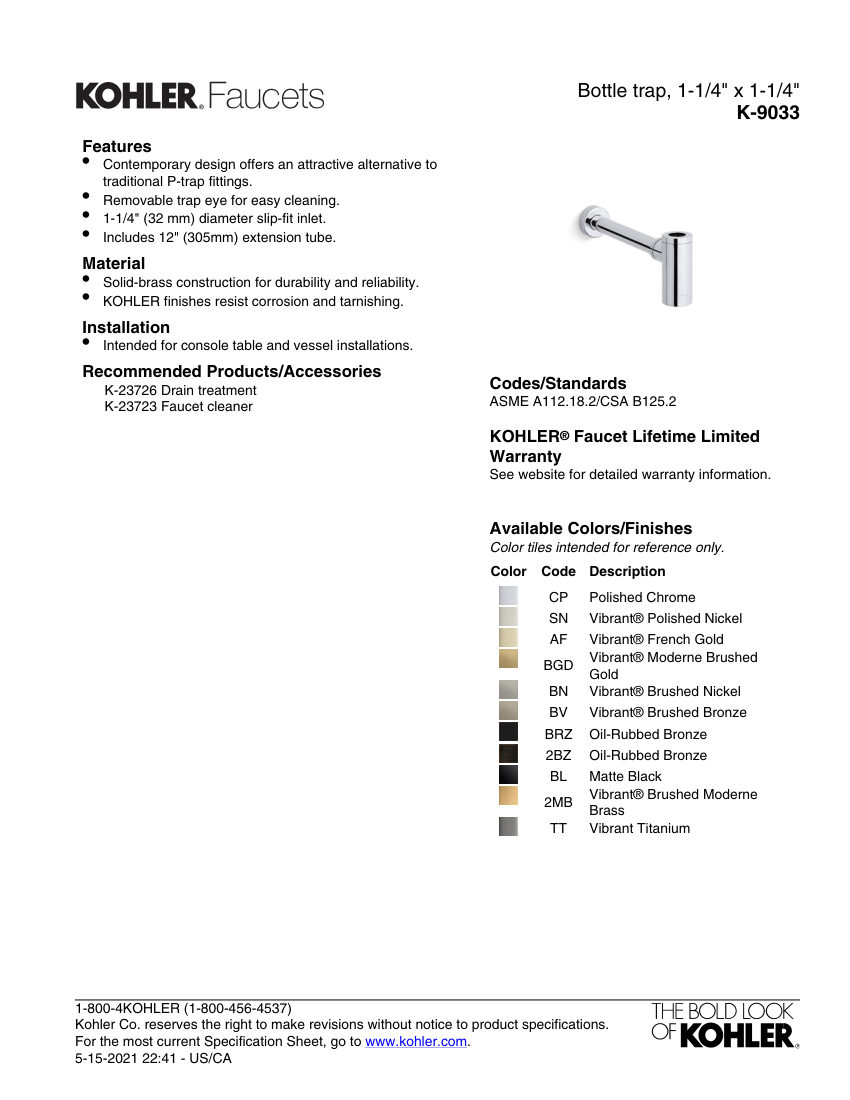

Kohler 9033 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
9033
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9033
DescriptionKohler Bottle Trap (Plumbing Fittings). Model K-9033. 1-1/4" (32 mm) diameter slip-fit inlet; Includes 12" (305 mm) extension tube; Removable trap eye for easy cleaning; Solid-brass construction. material: Solid brass
Connection size1-1/4" x 1-1/4"
End connectionSlip-fit inlet
FinishPolished Chrome, Vibrant Polished Nickel, Vibrant French Gold, Vibrant Moderne Brushed Gold, Vibrant Brushed Nickel, Vibrant Brushed Bronze, Oil-Rubbed Bronze, Matte Black, Vibrant Brushed Moderne Brass, Vibrant Titanium
MountingConsole table and vessel installations
DimensionsHeight 5" (127 mm) Min to
